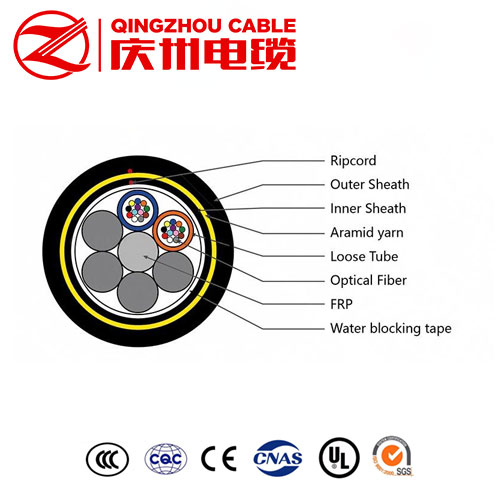

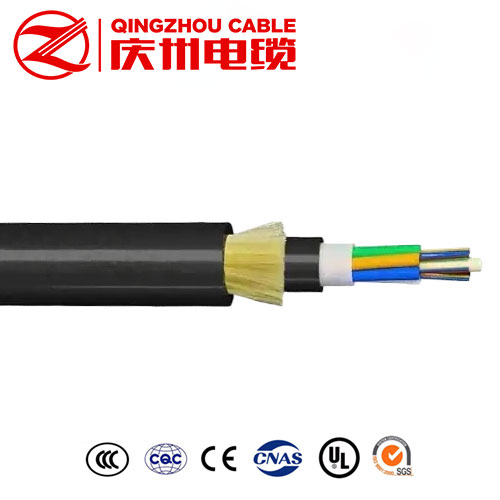

Double Jacket ADSS Large Span 200M to 1500M

The design of ADsS cable takes full account of the actual situation of power lines and is suitable for different grades of high voltage transmission lines Polyethylene（PE)sheath can be used for 10 kV and 35 kV power lines. For 110 kV and 220 kV power lines, the optical cable hanging point must be determined by calculating the electric field strength distribution and the electric mark(AT)outer sheath must be adopted. At the same time, the amount of aramid fiber and the perfect stranding process were carefully designed to meet the application requirements of different spans.

Feature Characteristics:
1. Suitable for use on distribution and high voltage transmission lines with mini spans or self supporting
2. HDPE/Track-resistant outer jacket available for the high voltage line where space potentials up to 35kv
3. The inside of the loose tube is filled with gel to block water
4. Aramid yarn replaces messenger wire, has a full dielectric structure and has higher tensile strength. It is usually used in lines with a span up to 1500 meters
5. The fiber counts from 2-288 fibers

Standards

Comply with standard IEEE 1222-2004 as well as IEC 60794-1.
