OPGW Aluminum Tube Optical Cable

APPLICATION

OPGW (Optical Ground Wire) is designed for overhead power transmission systems where reliable grounding, lightning protection, and fiber-optic communication are required. By integrating optical fibers into the ground wire, OPGW can provide a communication link while also performing the functions of a conventional overhead earth wire.

It is widely used on high-voltage and extra-high-voltage transmission lines, particularly for long-distance, intercity, and cross-country power transmission projects that require both electrical protection and high-capacity communication.

DESCRIPTION

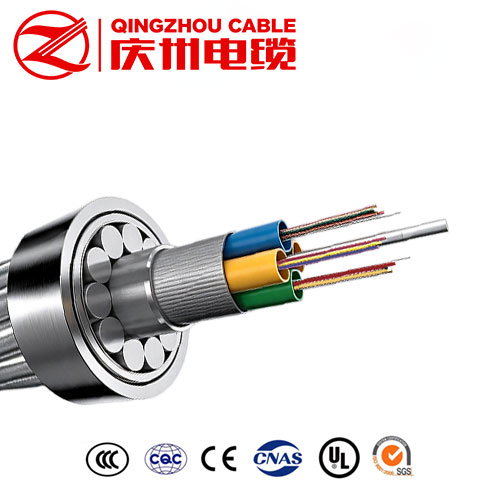

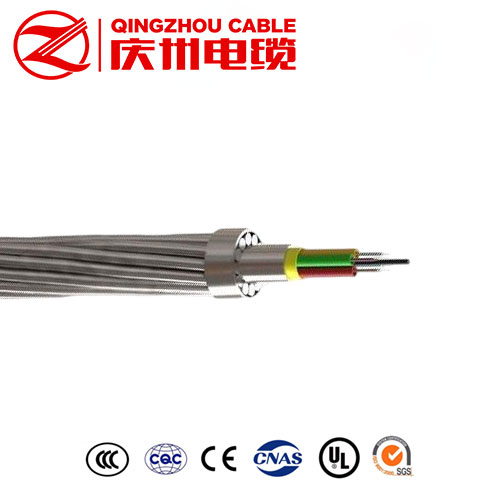

Qingzhou OPGW is constructed with an aluminum tube containing optical fibers and protected by one or more layers of stranded metallic wires. Depending on the required mechanical strength, electrical capacity, and installation conditions, the outer layers can be manufactured using aluminum-clad steel wires, aluminum alloy wires, or a combination of both.

The structure can be customized according to transmission-line design requirements, including fiber count, wire configuration, mechanical strength, and short-circuit current capacity.

MAIN CHARACTERISTICS

• Combines overhead grounding, lightning protection, and optical communication in one cable.
• Provides good resistance to corrosion, vibration, and environmental conditions.
• Optimized stranded construction provides stable mechanical performance and good resistance to vibration fatigue.
• The optical fibers are protected inside the aluminum tube, helping maintain reliable optical transmission performance.
• Designed to withstand the thermal effects associated with short-circuit currents on transmission lines.
• Suitable for long-distance power transmission networks and communication infrastructure.

STANDARDS

Our OPGW cables can be designed and tested in accordance with applicable international standards, including:

• ITU-T G.652 — Characteristics of a single-mode optical fiber.
• ITU-T G.655 — Characteristics of non-zero dispersion-shifted single-mode optical fibers.
• IEC 60794-4-10 — Aerial optical cables along electrical power lines — family specification for OPGW.
• IEC 60794-1-2 — Optical fibre cables — basic optical cable test procedures.
• IEEE 1138 — Standard for testing and performance of optical ground wire for use on electric utility power lines.
• IEC 61232 — Aluminium-clad steel wires for electrical purposes.
• IEC 60104 — Aluminium-magnesium-silicon alloy wires for overhead line conductors.
• IEC 61089 — Round wire concentric lay overhead electrical stranded conductors.
