2XS2Y-TRIPLEX / N2XS2Y-TRIPLEX A2XS2Y-TRIPLEX / NA2XS2Y-TRIPLEX

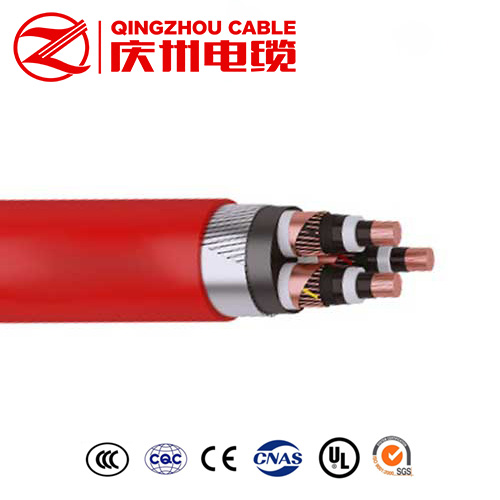

2XS2Y-TRIPLEX / N2XS2Y-TRIPLEX A2XS2Y-TRIPLEX / NA2XS2Y-TRIPLEX Cable construction
|
Construction
|
According to IEC 60502 and DIN VDE 0276-620
|
|
Conductor
|
Cu and Al stranded compacted,
according to IEC 60228 class 2 and VDE 0295 class 2
|
|
Inner semi-
conductive layer
|
semi-conductive XLPE compound
|
|
Insulation
|
XLPE compound
|
|
Outer semi-
conductive layer
|
semi-conductive XLPE compound and semi-conductive tape or extruded semi-conductive XLPE compound
|
|
Metal screen
|
Cu wires concentrically laid and
one contact of Cu tape with
thickness of 0.1mm.
|
|
Separating layer
|
Layer of plastic tape
|
|
Sheath
|
PE compound type ST7 according to IEC 60502 type DMP2 according to VDE 0276
|
|
Factory bundled
in TRIPLEX
|
three single-core cables
factory bindled in TRIPLEX
|
|
Color
|
black
|
2XS2Y-TRIPLEX / N2XS2Y-TRIPLEX A2XS2Y-TRIPLEX / NA2XS2Y-TRIPLEX Technical data
| Conductor resistance at 20°C | According to BDS904 |
| (IEC60228) class 2 | |
| Operating temperature | 90°C continuous operation |
| Overload temperature | 130°C /100h per year max./ |
| Short circuit temperature | 250°C /5 s max./ |
| Nominal voltage Uo/U: | 6/10;12/20 kV |
| Highest system voltage | 6/10; 12/20 kV |
| Uo/U, no more than | 12kV; 24kV kV |
| Test voltage Uo/U | 6/10; 12/20 kV |
| AC (≈) – 5 min | 15kV; 30kV kV |
| DC (=) – 15 min | 48kV; 96kV kV |
| Level of partial discharge at 2*Uo | |
| Bending radius, min | max. 5 pC |
| Temperature of laying | 15x D cable |
| no less than – 20°C | |
| Temperature of exploitation |
-30 to 50°C |
| Tests | according to IEC 60502-2 or DIN VDE 0276-620 |
| Force of strain in laying N where: | Al cores – 30*n*S core Cu cores – 50*n*S core n- number of cores and -S-cross-section of conductors in mm |
Construction data 2XS2Y- TRIPLEX / N2XS2Y- TRIPLEX, A2XS2Y- TRIPLEX / NA2XS2Y- TRIPLEX 6/1 0; 12/20; 18/30 kV
|
Number of conductors and nominal cross section
|
Thickness of insulation
|
Thickness of sheath
|
Nominal cross-section of screen
|
Cable diameter approx.
|
2XS2Y-TRIPLEX
N2XS2-TRIPLE
|
A2XS2Y-TRIPLEX
NA2XS2-TRIPLEX
|
|||||
|
Mass of Cu
|
Mass of cable
|
Mass of Al
|
Mass of
Cu approx.
|
Mass of
cable
approx.
|
|||||||
|
min
|
max
|
||||||||||
|
Nxmm2
|
mm
|
mm
|
mm2
|
mm
|
mm
|
kg/km
|
kg/km
|
kg/km
|
kg/km
|
kg/km
|
|
|
6/10 kV
|
|||||||||||
|
3x(1x35rm /16) 3x(1x50rm /16)
|
3,4
3,4
|
2,5
2,5
|
16
16
|
49.6
51.8
|
60.5 62.6
|
1479 1812
|
2574 2985
|
282
381
|
528
528
|
1905 2082
|
|
|
3x(1x70rm /16)
|
3,4
|
2,5
|
16
|
56.2
|
67.0
|
2379
|
3675
|
549
|
528
|
2373
|
|
|
3x(1x95rm /16)
|
3,4
|
2,5
|
16
|
58.3
|
69.1
|
3099
|
4518
|
762
|
528
|
2709
|
|
|
3x(1x120rm/16)
|
3,4
|
2,5
|
16
|
62.6
|
73.4
|
3765
|
5283
|
963
|
528
|
3009
|
|
|
3x(1x150rm/16)
|
3,4
|
2,5
|
16*
|
64.8
|
75.6
|
4521
|
6156
|
1182
|
528
|
3345
|
|
|
3x(1x185rm/16) 3x(1x240rm/16)
|
3,4
3,4
|
2,5
2,5
|
16*
16*
|
69.1
73.4
|
79.9
84.2
|
5526 7095
|
7281 9024
|
1485
1947
|
528
528
|
3771 4407
|
|
|
3x(1x150rm/25) 3x(1x185rm/25)
|
3,4
3,4
|
2,5
2,5
|
25
25
|
64.8
69.1
|
75.6
79.9
|
4788 5790
|
6408 7533
|
1182 1485
|
795
795
|
3597 4023
|
|
|
3x(1x240rm/25)
|
3,4
|
2,5
|
25
|
73.4
|
84.2
|
7362
|
9276
|
1947
|
795
|
4659
|
|
|
3x(1x300rm/25)
|
3,4
|
2,5
|
25
|
77.8
|
88.6
|
8940
|
11022
|
2436
|
795
|
5310
|
|
|
12/20 kV
3x(1x35rm /16)
|
5,5
|
2,5
|
16
|
58.3
|
69.1
|
1479
|
3069
|
282
|
528
|
2400
|
|
|
3x(1x50rm /16) 3x(1x70rm /16)
|
5,5
5,5
|
2,5
2,5
|
16
16
|
60.5
64.8
|
71.3
75.6
|
1812 2379
|
3501
4227
|
381
549
|
528
528
|
2601 2925
|
|
|
3x(1x95rm /16)
|
5,5
|
2,5
|
16
|
67.0
|
77.8
|
3099
|
5103
|
762
|
528
|
3294
|
|
|
3x(1x120rm/16)
|
5,5
|
2,5
|
16
|
71.3
|
82.1
|
3765
|
5643
|
963
|
528
|
3372
|
|
|
3x(1x150rm/16)
|
5,5
|
2,5
|
16*
|
73.4
|
84.2
|
4521
|
6798
|
1182
|
528
|
3987
|
|
|
3x(1x185rm/16)
|
5,5
|
2,5
|
16*
|
77.8
|
88.6
|
5526
|
7956
|
1485
|
528
|
4446
|
|
|
3x(1x240rm/16) 3x(1x150rm/25)
|
5,5
5,5
|
2,5
2,5
|
16*
25
|
84.2
73.4
|
95.0 84.2
|
7095 4788
|
9999 7050
|
1947 1182
|
528
795
|
5379 4239
|
|
|
3x(1x185rm/25)
|
5,5
|
2,5
|
25
|
77.8
|
88.6
|
5790
|
8208
|
1485
|
795
|
4698
|
|
|
3x(1x240rm/25)
|
5,5
|
2,5
|
25
|
84.2
|
95.0
|
7362
|
9999
|
1947
|
795
|
5379
|
|
|
18/30 KV
3x(1x50rm /16)
|
8,0
|
2,5
|
16
|
71.3
|
82.1
|
1812
|
4182
|
381
|
528
|
3279
|
|
|
3x(1x70rm /16) 3x(1x95rm /16)
|
8,0
8,0
|
2,5
2,5
|
16
16
|
75.6
77.8
|
86.4 88.6
|
2379 3099
|
4944 5856
|
549
762
|
528
528
|
3642 4047
|
|
|
3x(1x120rm/16)
|
8,0
|
2,5
|
16
|
82.1
|
92.9
|
3765
|
6678
|
963
|
528
|
4407
|
|
|
3x(1x150rm/25)
|
8,0
|
2,5
|
25
|
84.2
|
95.0
|
4788
|
7866
|
1182
|
795
|
5055
|
|
|
3x(1x185rm/25)
|
8,0
|
2,5
|
25
|
88.6
|
99.4
|
5790
|
9060
|
1485
|
795
|
5550
|
|
