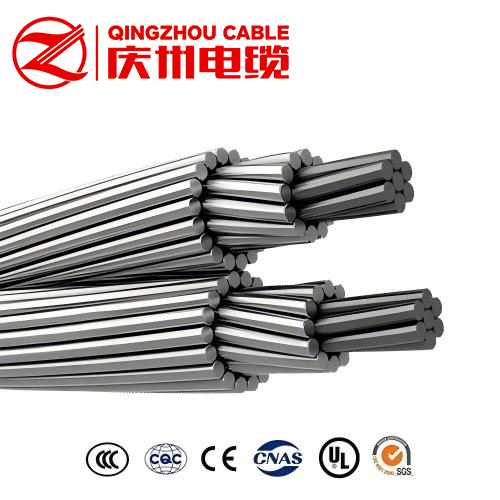

AACSR AACSR/AW Conductor – All Aluminium Alloy Conductors Steel Reinforced
AACSR AACSR/AW – All Aluminium Alloy Conductors Steel Reinforced Constructions

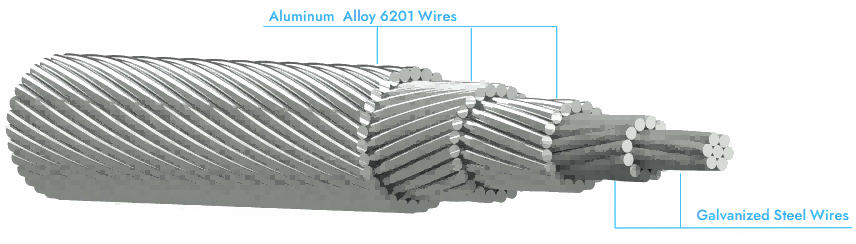

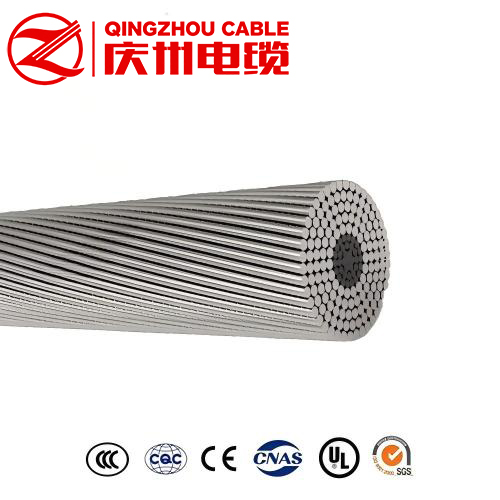

Aluminium Alloy Conductor Steel Reinforced Conductors (AACSR) is a concentrically stranded conductor composed of one or more layers of 6201-T81 Aluminium Alloy (Aluminium-Magnesium-Silicon) wire stranded with a high-strength coated steel core. The core may be single wire or stranded depending on the size.The proportions of aluminium alloy and steel can be varied to obtain the relation between current carrying capacity and mechanical strength best suited to each application.
AACSR Conductors have approx. 40% to 60% more strength than comparable standard ACSR with only 8 to 10% decrease in conductivity.
AACSR AACSR/AW Applicable Standard
Aluminium Conductors, Aluminium-Clad Steel Reinforced (ACSR/AW) is designed and tested to meet or exceed the following specifications:
IEC 61089
ASTM B711
DIN 48206
NF C34-125
AACSR AACSR/AW Applications
The high tensile strength of the 6201-T81 wires combined with the high strength of steel provides an exceptionally high strength conductor with good conductivity, which can be used in long spans. These are used in Transmission and Distribution system to carry the generated electrical energy from the generating station to the end user.
These homogeneous conductors in aluminium alloy show many advantages i.e. lightness, high breaking load allowing long spans, simplicity of the accessories and lastly easy recycling. These conductors are suitable for the long spans network.
The excellent resistance of AACSR conductor to corrosion enables them to be used in coastal areas as well.
Aluminum Alloy Conductor, Steel Reinforced. Specifications
AACSR IEC 61089
| Code Number |
No./Dia.of Al Alloy Wire | No./Dia.of Steel Wire | Overall Diameter of Conductor | Approx. Weight | Max.D.C. Resistance of Conductor at 20ºC | Rated Strength | |
| A2/S1A Conductor | A2/S3A Conductor | ||||||
| mm² | No./mm | No./mm | mm | kg/km | Ω/km | kN | kN |
| 16 | 6/1.98 | 1/1.98 | 5.93 | 74.4 | 1.7934 | 9.02 | 9.88 |
| 25 | 6/2.47 | 1/2.47 | 7.41 | 116.2 | 1.1478 | 13.96 | 15.25 |
| 40 | 6/3.13 | 1/3.13 | 9.38 | 185.9 | 0.7174 | 22.02 | 24.17 |
| 63 | 6/3.92 | 1/3.92 | 11.8 | 292.8 | 0.4555 | 34.68 | 37.58 |
| 100 | 18/2.85 | 1/2.85 | 14.3 | 366.4 | 0.288 | 41.24 | 42.97 |
| 125 | 18/3.19 | 1/3.19 | 16 | 458 | 0.2304 | 51.23 | 53.47 |
| 125 | 26/2.65 | 7/2.06 | 16.8 | 579.9 | 0.231 | 69.86 | 76.42 |
| 160 | 18/3.61 | 1/3.61 | 18 | 586.2 | 0.18 | 65.58 | 68.03 |
| 160 | 26/3.00 | 7/2.34 | 19 | 742.3 | 0.1805 | 88.52 | 96.61 |
| 200 | 18/4.04 | 1/4.04 | 20.2 | 732.8 | 0.144 | 81.97 | 85.04 |
| 200 | 26/3.36 | 7/2.61 | 21.3 | 927.9 | 0.1444 | 110.64 | 120.77 |
| 250 | 22/4.08 | 7/2.27 | 23.1 | 1013.5 | 0.1154 | 117.09 | 124.72 |
| 250 | 26/3.75 | 7/2.92 | 23.8 | 1159.6 | 0.1155 | 138.31 | 150.96 |
| 315 | 45/3.2 | 7/2.14 | 25.8 | 1196.5 | 0.0917 | 136.28 | 143.3 |
| 315 | 26/4.21 | 7/3.28 | 26.7 | 1461.4 | 0.0917 | 171.9 | 188.44 |
| 400 | 45/3.61 | 7/2.41 | 28.9 | 1519.4 | 0.0722 | 172.1 | 180.36 |
| 400 | 54/3.29 | 7/3.29 | 29.7 | 1738.3 | 0.0723 | 201.46 | 218.17 |
| 450 | 45/3.83 | 7/2.55 | 30.6 | 1709.3 | 0.0642 | 193.61 | 203.28 |
| 450 | 54/3.49 | 7/3.49 | 31.5 | 1955.6 | 0.0643 | 226.64 | 245.44 |
| 500 | 45/4.04 | 7/2.69 | 32.3 | 1899.3 | 0.0578 | 215.12 | 225.86 |
| 500 | 54/3.68 | 7/3.68 | 33.2 | 2172.9 | 0.0578 | 251.82 | 269.73 |
| 560 | 45/4.27 | 7/2.85 | 34.2 | 2127.2 | 0.0516 | 240.93 | 252.97 |
| 560 | 54/3.9 | 19/2.34 | 35.1 | 2420.9 | 0.0516 | 283.21 | 305.25 |
| 630 | 72/3.58 | 7/2.39 | 35.8 | 2248 | 0.0459 | 249.62 | 258.08 |
| 630 | 54/4.13 | 19/2.48 | 37.2 | 2723.5 | 0.0459 | 318.61 | 343.4 |
| 710 | 72/3.8 | 7/2.53 | 38 | 2533.4 | 0.0407 | 281.32 | 290,85 |
| 710 | 54/4.39 | 19/2.63 | 39.5 | 3069.4 | 0.0407 | 359.06 | 387.01 |
| 800 | 72/4.04 | 7/2.69 | 40.4 | 2854.6 | 0.0361 | 316.98 | 327.72 |
| 800 | 84/3.74 | 7/3.74 | 41.1 | 3145.1 | 0.0362 | 356.03 | 374.44 |
| 900 | 72/4.28 | 7/2.85 | 42.8 | 3211.4 | 0.0321 | 356.6 | 368.69 |
| 900 | 84/3.96 | 7/3.96 | 43.6 | 3538.3 | 0.0322 | 400.53 | 421.25 |
| 1000 | 84/4.18 | 19/2.61 | 45.9 | 3916.8 | 0.0289 | 446.37 | 471.67 |
| 1120 | 84/4.42 | 19/2.65 | 48.6 | 4386.8 | 0.0258 | 499.93 | 528.27 |
AACSR ASTM B711
| Nominal Cross Section |
Alloy Cross Section | Steel Cross Section | Number of Alloy Wires |
Diameter of Alloy Wires |
Number of Steel Wires |
Diameter of Steel Wires |
Overall Diameter |
Linear Mass |
Rated Tensile Strength |
Max.D.C. Resistance at 20℃ |
| mm² | mm² | mm² | – | mm | – | mm | mm | kg/km | daN | Ω/km |
| 163 | 140 | 23 | 26 | 2.62 | 7 | 2.04 | 16.6 | 560 | 7500 | 0.24 |
| 173 | 140 | 33 | 30 | 2.44 | 7 | 2.44 | 17.1 | 650 | 8740 | 0.24 |
| 186 | 160 | 26 | 26 | 2.8 | 7 | 2.18 | 17.7 | 645 | 8560 | 0.21 |
| 198 | 160 | 38 | 30 | 2.61 | 7 | 2.61 | 18.3 | 740 | 10600 | 0.21 |
| 209 | 180 | 29 | 26 | 2.97 | 7 | 2.31 | 18.8 | 725 | 9510 | 0.187 |
| 222 | 180 | 42 | 30 | 2.76 | 7 | 2.76 | 19.3 | 825 | 11200 | 0.187 |
| 232 | 200 | 32 | 26 | 3.13 | 7 | 2.43 | 19.8 | 800 | 10600 | 0.168 |
| 247 | 200 | 47 | 30 | 2.91 | 7 | 2.91 | 20.4 | 920 | 12400 | 0.168 |
| 260 | 224 | 36 | 26 | 3.31 | 7 | 2.57 | 21 | 900 | 11800 | 0.15 |
| 276 | 224 | 52 | 30 | 3.08 | 7 | 3.08 | 21.6 | 1025 | 13900 | 0.15 |
| 291 | 250 | 41 | 26 | 3.5 | 7 | 2.72 | 22.2 | 1010 | 12900 | 0.135 |
| 308 | 250 | 58 | 30 | 3.26 | 7 | 3.26 | 22.8 | 1145 | 15600 | 0.135 |
| 326 | 280 | 46 | 26 | 3.7 | 7 | 2.88 | 23.4 | 1140 | 14400 | 0.12 |
| 345 | 280 | 65 | 30 | 3.45 | 7 | 3.45 | 24.2 | 1280 | 17100 | 0.12 |
| 367 | 315 | 52 | 26 | 3.93 | 7 | 3.06 | 24.9 | 1276 | 16300 | 0.107 |
| 387 | 315 | 72 | 30 | 3.66 | 19 | 2.2 | 25.6 | 1433 | 19000 | 0.107 |
| 413 | 355 | 58 | 26 | 4.17 | 7 | 3.24 | 26.4 | 1433 | 18300 | 0.095 |
| 436 | 355 | 81 | 30 | 3.88 | 19 | 2.33 | 27.2 | 1614 | 21100 | 0.095 |
| 465 | 400 | 65 | 26 | 4.43 | 7 | 3.45 | 28.1 | 1612 | 20700 | 0.0842 |
| 491 | 400 | 91 | 30 | 4.12 | 19 | 2.47 | 28.8 | 1816 | 23700 | 0.0842 |
| 509 | 450 | 59 | 54 | 3.26 | 19 | 1.98 | 29.5 | 1703 | 21500 | 0.0748 |
| 563 | 500 | 63 | 54 | 3.43 | 19 | 2.06 | 30.9 | 1873 | 22900 | 0.0673 |
| 631 | 560 | 71 | 54 | 3.63 | 19 | 2.18 | 32.7 | 2101 | 25700 | 0.0601 |
| 710 | 630 | 80 | 54 | 3.85 | 19 | 2.31 | 34.6 | 2365 | 28600 | 0.0534 |
| 800 | 710 | 90 | 54 | 4.09 | 19 | 2.45 | 36.8 | 2665 | 32200 | 0.0474 |
| 901 | 800 | 101 | 54 | 4.34 | 19 | 2.6 | 39 | 3000 | 36300 | 0.042 |
| 973 | 900 | 73 | 84 | 3.69 | 19 | 2.21 | 40.6 | 3062 | 35500 | 0.0374 |
| 1081 | 1000 | 81 | 84 | 3.89 | 19 | 2.33 | 42.8 | 3395 | 39100 | 0.0337 |
| 1211 | 1120 | 91 | 84 | 4.12 | 19 | 2.47 | 45.3 | 3803 | 43900 | 0.03 |
| 1352 | 1250 | 102 | 84 | 4.35 | 19 | 2.61 | 47.8 | 4250 | 49000 | 0.027 |
AACSR DIN 48206
| Designation | Aluminium | Steel | Cross-sectional Area (mm2) | OD (mm) | R at 20C (Ohms/km) | ||||
| Strands | Wire Diam. (mm) | Strands | Wire Diam. (mm) | Aluminium | Steel | Total | |||
| 70/12 | 26 | 1.85 | 7 | 1.4 | 69.9 | 11.4 | 81.3 | 11.7 | 0.479 |
| 95/15 | 26 | 2.15 | 7 | 1.7 | 94.4 | 15.3 | 109.7 | 13.6 | 0.355 |
| 125/30 | 30 | 2.33 | 7 | 2.3 | 127.9 | 29.8 | 157.8 | 16.3 | 0.262 |
| 150/25 | 26 | 2.7 | 7 | 2.1 | 148.9 | 24.2 | 173.1 | 17.1 | 0.225 |
| 170/40 | 30 | 2.7 | 7 | 2.7 | 171.8 | 40.1 | 211.8 | 18.9 | 0.195 |
| 185/30 | 26 | 3 | 7 | 2.3 | 183.8 | 29.8 | 213.6 | 19 | 0.182 |
| 210/50 | 30 | 3 | 7 | 3 | 212.1 | 49.5 | 261.5 | 21 | 0.158 |
| 230/30 | 24 | 3.5 | 7 | 2.3 | 230.9 | 29.8 | 260.8 | 21 | 0.145 |
| 265/35 | 24 | 3.74 | 7 | 2.5 | 263.7 | 34.1 | 297.7 | 22.4 | 0.127 |
| 305/40 | 54 | 2.68 | 7 | 2.7 | 304.6 | 39.5 | 344.1 | 24.1 | 0.11 |
| 380/50 | 54 | 3 | 7 | 3 | 381.7 | 49.5 | 431.2 | 27 | 0.088 |
| 450/40 | 48 | 3.45 | 7 | 2.7 | 448.7 | 39.5 | 488.2 | 28.7 | 0.075 |
| 560/50 | 48 | 3.86 | 7 | 3 | 561.7 | 49.5 | 611.2 | 32.2 | 0.06 |
| 680/85 | 54 | 4 | 19 | 2.4 | 678.6 | 86 | 764.5 | 36 | 0.049 |
AACSR NF C34-125
| Designation | Aluminium | Steel | Cross-sectional Area (mm2) | OD (mm) | R at 20C (Ohms/km) | ||||
| Strands | Wire Diam. (mm) | Strands | Wire Diam. (mm) | Aluminium | Steel | Total | |||
| PHLOX 116.2 | 18 | 2 | 19 | 2 | 56.5 | 59.7 | 116.2 | 14 | 0.591 |
| PHLOX 147.1 | 18 | 2.25 | 19 | 2.3 | 71.6 | 75.5 | 147.1 | 15.75 | 0.467 |
| PASTEL 147.1 | 30 | 2.25 | 7 | 2.3 | 119.3 | 27.8 | 147.1 | 15.75 | 0.279 |
| PHLOX 181.6 | 18 | 2.5 | 19 | 2.5 | 88.4 | 93.3 | 181.6 | 17.5 | 0.378 |
| PASTEL 181.6 | 30 | 2.5 | 7 | 2.5 | 147.3 | 34.4 | 181.6 | 17.5 | 0.226 |
| PHLOX 228 | 18 | 2.8 | 19 | 2.8 | 110.8 | 117 | 227.8 | 19.6 | 0.3 |
| PASTEL 228 | 30 | 2.8 | 7 | 2.8 | 184.7 | 43.1 | 227.8 | 19.6 | 0.18 |
| PHLOX 288 | 18 | 3.15 | 19 | 3.2 | 140.3 | 148.1 | 288.3 | 22.05 | 0.238 |
| PASTEL 288 | 30 | 3.15 | 7 | 3.2 | 233.8 | 54.6 | 288.3 | 22.05 | 0.142 |
| PASTEL 299 | 42 | 2.5 | 19 | 2.5 | 206.2 | 93.3 | 299.4 | 22.45 | 0.162 |
| PHLOX 376 | 24 | 2.8 | 37 | 2.8 | 147.8 | 227.8 | 375.6 | 26.4 | 0.226 |
