AL59 – AAAC

Category: Bare Conductor Tag: High Conductivity Alloy Conductor

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

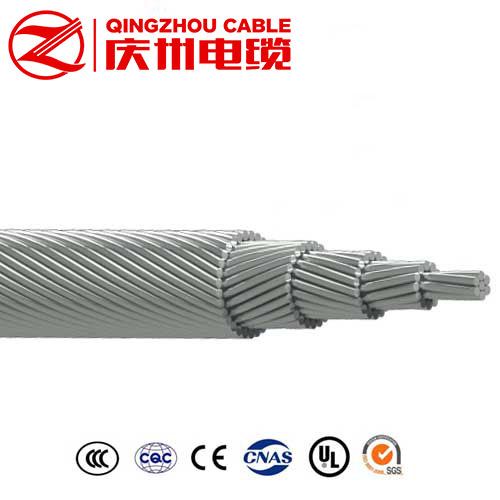

ALL ALUMINUM ALLOYED CONDUCTOR – AL59 (AAAC)

AAAC Application

AL59 – AAAC is an aluminum alloy, that maintain a high conductivity together with a increased tensile strength. Additional corrosion protection is available through different grease alternatives.

AAAC Standard

Conductor SS 424 08 14

AAAC High Conductivity Alloy Conductor (AL5, AL6, AL7, AL57, AL59, AL60, AAAC 1120 etc)

High Conductivity Alloy Conductors : These are low resistance High Conductivity alloy conductors with excellent electrical characteristics, excellent sagtension characteristics and superior corrosion resistance to that of ACSR. As compared to ACSR they have lighter weight, comparable strength and current carrying capacity, lower electrical losses and superior corrosion resistance have given this conductor wide acceptance as a transmission conductor. It has found limited use, however, as a distribution conductor

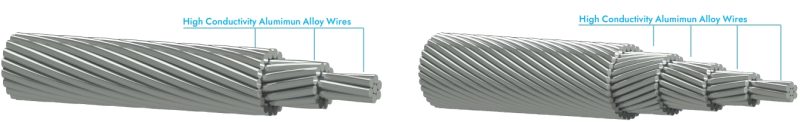

AAAC Construction

Aluminium Alloy wires, concentrically stranded.

Values based on following Specifications:
Swedish Specification SS 424 08 14, SS 424 08 12, EN 50182, AS 1531 & More.

AAAC Features

• Better Conductivity, so better power transmission.
• Lower Operating costs due to lower ohmic losses.
• Can be recycled easily.

AAAC Specifications

Old code	Area [mm2]	No.of wires	Wire diameter [mm]	Conductor diameter [mm]	Weight [kg/km]	Tensile strength [kN]	DC resistance [Ω/km]
62	6244	7	337	101	170	156	4700
99	9931	7	425	128	271	228	2960
159	15860	19	326	163	436	397	1860
241	24120	19	402	201	663	555	1230
329	33000	37	337	236	910	825	899
454	45450	61	308	277	1260	1130	654
593	59360	61	352	317	1640	1430	501
774	77420	61	402	362	2140	1780	384
910	91070	61	436	392	2520	2090	326
