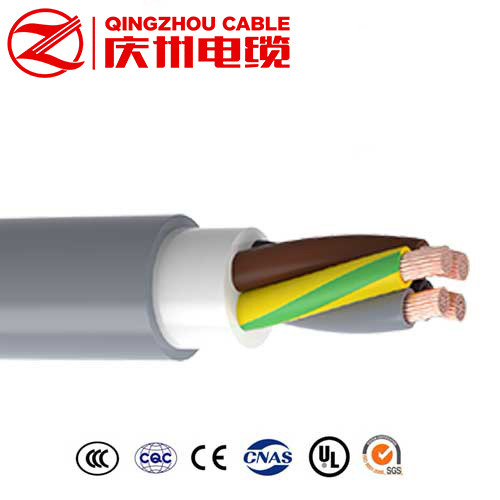

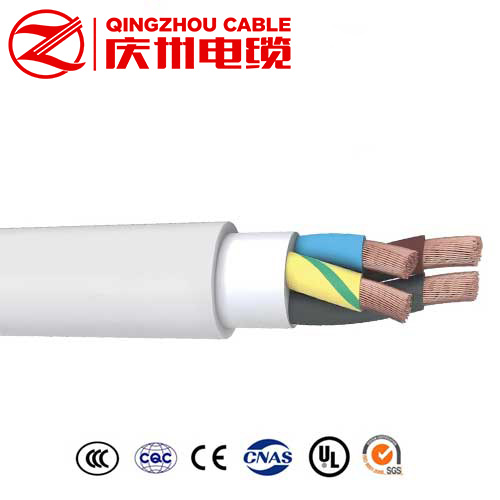

FG7OR

Category: LV & MV Power Cables Tag: Power Cables 0.6/1 KV PVC and PE Insulated

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

FG7OR – Power cable insulated with high quality EPM-rubber, with PVC sheath, not propagating fire, with reduced corrosive gas emission

FG7OR Application

This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected

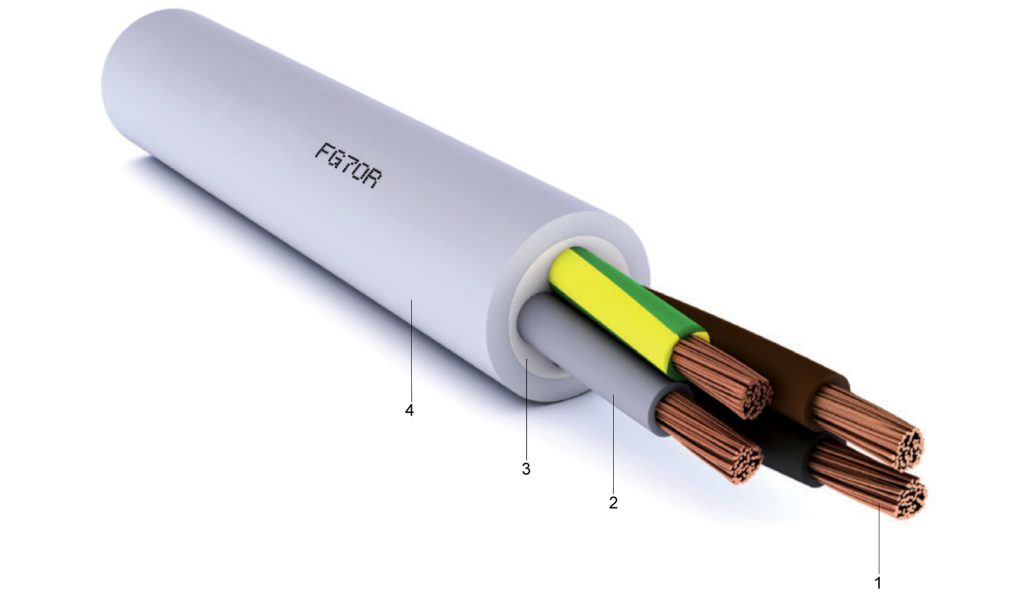

FG7OR Construction

1 ….. fine wired copper conductor, class 5

2 ….. rigid EPM rubber
3 ….. thermoplastic compound, fire resistend, non water absorbing
4 ….. anti abrasive PVC compound, fire resistend, reduced wather permeability

FG7OR Information

at short circuit of max. 5 sec. <=250 mm² –> 250°C >250 mm² –> 220°C

FG7OR Standards

CEI 20-13 IEC 60502-1 CEI UNEL 35375 (cables with 1-5 cors) CEI UNEL 35377 (signal, with 6 and more cors)

FG7OR Technical data

Nominal voltage Uo/U		[V]	600 / 1000 Volt
Test voltage		[V]_AC	4000
Temperature range	in motion		– 0°C do +90°C
	fixed		-15°C do +90°C
Bending radius		x diameter	4
	signal	x diameter	6
Flammability	standard		EN 60332-1-2

FG7OR Specifications

Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter cca mm	Weight cca kg/km	Current carrying capacity ground A	Current carrying capacity air A
1 x 1,5	14,4	5,8	47	21	24
1 x 2,5	24	6,3	60	27	33
1 x 4	38,4	6,7	78	35	45
1 x 6	57,6	7,4	103	44	58
1 x 10	96	8,3	146	59	80
1 x 16	153,7	9,5	204	77	107
1 x 25	241	11	300	100	135
1 x 35	336	12	399	121	169
1 x 50	480	14	550	150	207
1 x 70	672	16,1	781	184	268
1 x 95	912	18	1010	217	328
1 x 120	1155	19	1263	251	383
1 x 150	1440	22,3	1600	287	444
1 x 185	1776	23,7	1893	323	510
1 x 240	2305	26,4	2430	379	607
1 x 300	2880	31	3175	429	703
1 x 400	3840	35,7	4136	500	823

Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter cca mm	Weight cca kg/km	Current carrying capacity ground A	Current carrying capacity air A
2 x 1,5 RE	28,8	9,6	131	23	26
2 x 2,5 RE	48	10,6	170	30	36
2 x 4 RE	76,8	11,4	214	39	49
2 x 6 RE	115,2	12,9	283	49	63
2 x 10 RE	192	14,6	407	66	86
2 x 16 RM	307,2	16,8	572	86	115
3 x 1,5 RE	43,2	10,0	148	19	23
3 x 2,5 RE	72	11,1	194	25	32
3 x 4 RE	115,2	12,0	254	32	42
3 x 6 RE	172,8	13,6	346	41	54
3 x 10 RE	288	15,5	497	55	75
3 x 16 RE	460,8	17,8	712	72	100
3 x 25 RM	720	21,5	1.062	93	127
3 x 35 SM	1008	25,1	1.492	114	158
3 x 50 SM	1440	27,6	1.972	141	192
3 x 70 SM	2016	32,6	2.856	174	246
3 x 95 SM	2736	38,7	3.905	206	298
3 x 120 SM	3456	41,1	4.474	238	346
3 x 150 SM	4320	46	5.400	272	399
3 x 35/25	1248	25	1.641	114	158
3 x 50/25	1680	29,6	2.252	141	192
3 x 70/35	2352	34,5	3.222	174	246
3 x 95/50	3216	39	4.195	206	298
3 x 120/70	4128	42	5.307	238	346
3 x 150/95	5232	49	6.869	272	399
4 x 1,5	57,6	11,4	178	19	23
4 x 2,5	96	12	231	25	32
4 x 4	153,7	13	308	32	42
4 x 6	230,5	14,6	418	41	54
4 x 10	384	16,8	620	55	75
4 x 16	614,4	19,4	886	72	100
4 x 25	960	23,6	1.338	93	127

Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter cca mm	Weight cca kg/km	Current carrying capacity ground A	Current carrying capacity air A
5 x 1,5 RE	72	12,2	212	19	23
5 x 2,5 RE	120	13	275	25	32
5 x 4 RE	192	14,1	370	32	42
5 x 6 RE	288	16	515	41	54
5 x 10 RE	480	18,7	770	55	75
5 x 16	768	21,5	1.102	72	100
5 x 25	1.200	26,1	1.658	93	127
5 x 35	1.680	29,6	2.269	114	158
5 x 50	2.400	34,5	3.043	141	192
7 x 1,5 RE	100,8	12,6	241	16	13
10 x 1,5 RE	144	15	343	16	13
12 x 1,5 RE	172,9	16,2	402	12,5	11
16 x 1,5 RE	230,5	17,6	471	12,5	11
19 x 1,5 RE	273,6	18,6	552	11,5	9
24 x 1,5 RE	345,6	21,6	707	11,5	9
7 x 2,5 RE	168	14,1	329	21	17,5
10 x 2,5 RE	240	17,6	501	21	17,5
12 x 2,5 RE	288	18	545	17,5	13,5
16 x 2,5 RE	384	20	686	17,5	13,5
19 x 2,5 RE	456	20,7	760	14	12
24 x 2,5 RE	576	24	1.000	14	12
