H05RR-F Rubber Sheathed Cable for Weak Mechanical Stress
Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY
Share:
Product Description
H05RR-F Application
For general use in dry locations for connections of electrical apparatus submitted to weak mechanical strength, like vacuum cleaner, kitchen appliance, etc. unsuitable for industrial and agricultural use.

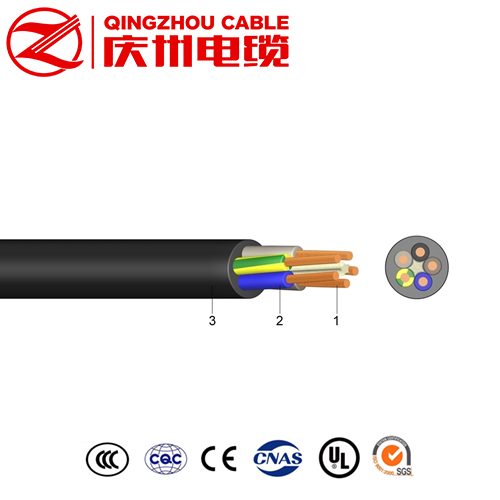

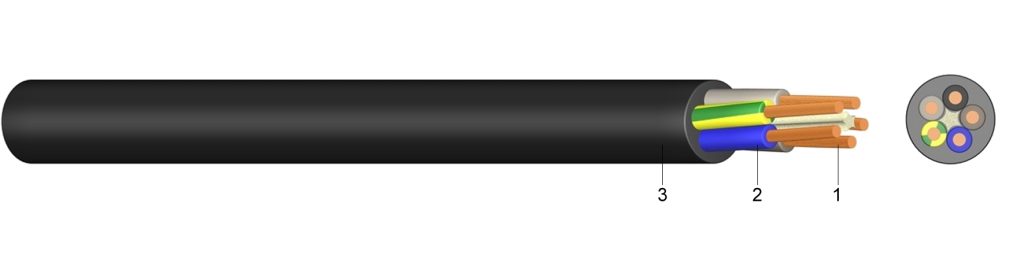

H05RR-F Construction
2…..core insulation of rubber
3…..outer sheath of ordinary ethylene propylene rubber, black
H05RR-F Standards:
DIN VDE 0282-4 DIN EN 60228 class 5 (construction) HD 308 S2 (core identification) HD 22.4 S4:2004
H05RR-F Technical data
| Nominal voltage Uo/U | [V] | 300 / 500 Volt | |
| Test voltage | [V]AC | 2000 | |
| Temperature range | in motion | -25°C till +60°C | |
| Operating temperature | short circuit | °C | 200 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | one time / fixed | x diameter | 4 |
| in motion | x diameter | 8 | |
| Flammability | standard | EN 60332-1-2 |
H05RR-F Specifications
| Number of cores and nominal cross section mm² | Copper figure kg/km | Cond. construction (appr. value) mm | Overall diameter appr. mm | Weight appr. kg / km |
| 2 X 0,75 | 14,40 | 24 x 0,21 | 6,2 | 56 |
| 3 G 0,75 | 21,60 | 24 x 0,21 | 6,7 | 72 |
| 4 G 0,75 | 28,80 | 24 x 0,21 | 7,3 | 86 |
| 5 G 0,75 | 36,00 | 24 x 0,21 | 8,2 | 109 |
| 2 X 1 | 19,20 | 32 x 0,21 | 6,8 | 68 |
| 3 G 1 | 28,80 | 32 x 0,21 | 7,2 | 82 |
| 4 G 1 | 38,40 | 32 x 0,21 | 7,8 | 98 |
| 2 X 1,5 | 28,80 | 30 x 0,26 | 8,2 | 101 |
| 3 G 1,5 | 43,20 | 30 x 0,26 | 8,8 | 120 |
| 4 G 1,5 | 57,60 | 30 x 0,26 | 9,8 | 155 |
| 5 G 1,5 | 72,00 | 30 x 0,26 | 10,7 | 185 |
| 2 X 2,5 | 48,00 | 50 x 0,26 | 9,7 | 145 |
| 3 G 2,5 | 72,00 | 50 x 0,26 | 10,2 | 180 |
| 4 G 2,5 | 96,00 | 50 x 0,26 | 11,2 | 225 |
| 5 G 2,5 | 120,00 | 50 x 0,26 | 12,7 | 282 |
