Product Description

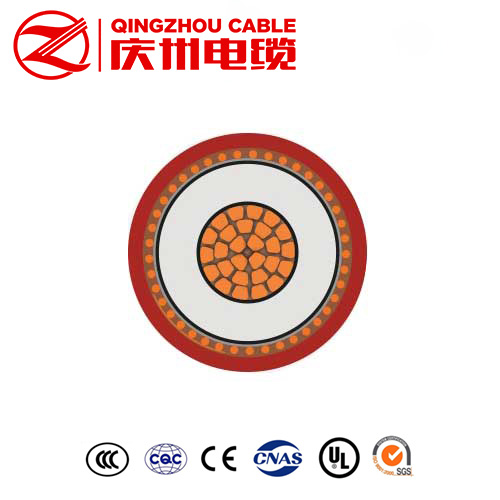

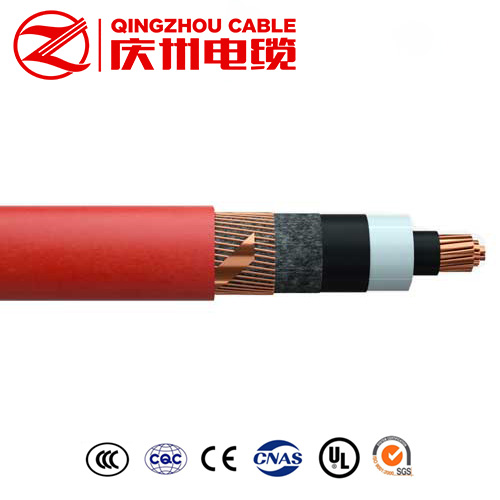

N2XSY Cable | XLPE Insulated Single-Core Cable with PVC Outer Sheath (6/10 kV, 12/20 kV, 18/30 kV)

N2XSY Cable Application

To be laid directly in ground, outdoors, indoors and in cable ducts.

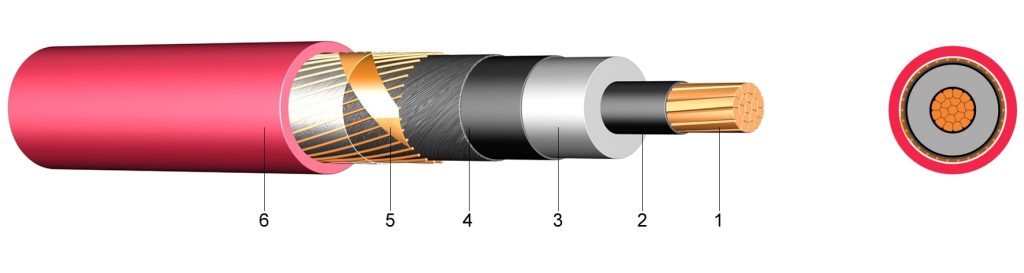

N2XSY Cable Construction

1…..stranded (RM) bare copper
2…..inner layer of semi-conducting material
3…..core insulation of cross-linked polyethylene
4…..outer layer of semi-conducting material
5…..screen of copper wires
6…..outer sheath of polyvinylchloride (PVC), red

N2XSY Cable Standards

DIN VDE 0276-620 HD 620 S1: 1995 DIN EN 60228 class 2 (construction)

N2XSY Cable Technical data

Test voltage	6 / 10 kV	[kV]	21 / 5 min.
	12 / 20 kV	[kV]	42 / 5 min.
	18 / 30 kV	[kV]	63 / 5 min.
Temperature range	in motion		– 5°C till +70°C
	fixed		-20°C till +70°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15
Flammability	standard		EN 60332-1-2

N2XSY Cable Specifications

Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter appr. mm	Overall diameter max. value appr. mm	Weight appr. kg / km	Current carrying capacity ground A*	Current carrying capacity air A*
*6 / 10 kV*
1 x 35 RM/16	518,40	23	28	900	187	197
1 x 50 RM/16	662,40	24	29	1.050	220	236
1 x 70 RM/16	854,40	26	31	1.300	268	294
1 x 95 RM/16	1.094,40	27	32	1.600	320	358
1 x 120 RM/16	1.334,40	29	34	1.850	363	413
1 x 150 RM/25	1.723,20	30	35	2.200	405	468
1 x 185 RM/25	2.059,20	32	37	2.600	456	535
1 x 240 RM/25	2.587,20	34	39	3.150	526	631
1 x 300 RM/25	3.163,20	36	40	3.750	591	722
1 x 400 RM/35	4.233,60	40	45	4.650	662	827
1 x 500 RM/35	5.193,60	43	47	5.750	739	921

Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter appr. mm	Overall diameter max. value appr. mm	Weight appr. kg / km	Current carrying capacity ground A*	Current carrying capacity air A*
*12 / 20 kV*
1 x 35 RM/16	518,40	27	32	1.100	189	200
1 x 50 RM/16	662,40	28	33	1.250	222	239
1 x 70 RM/16	854,40	30	35	1.450	271	297
1 x 95 RM/16	1.094,40	31	36	1.750	323	361
1 x 120 RM/16	1.334,40	33	38	2.050	367	416
1 x 150 RM/25	1.723,20	34	39	2.400	409	470
1 x 185 RM/25	2.059,20	36	41	2.800	461	538
1 x 240 RM/25	2.587,20	39	44	3.400	532	634
1 x 300 RM/25	3.163,20	41	46	4.000	599	724
1 x 400 RM/35	4.233,60	44	49	4.950	671	829
1 x 500 RM/35	5.193,60	47	52	6.050	754	953

Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter appr. mm	Overall diameter max. value appr. mm	Weight appr. kg / km	Current carrying capacity ground A*	Current carrying capacity air A*
*18 / 30 kV*
1 x 50 RM/16	662,40	33	38	1.450	225	241
1 x 70 RM/16	854,40	35	40	1.700	274	299
1 x 95 RM/16	1.094,40	36	41	2.050	327	363
1 x 120 RM/16	1.334,40	38	43	2.300	371	418
1 x 150 RM/25	1.723,20	39	44	2.700	414	472
1 x 185 RM/25	2.059,20	41	46	3.100	466	539
1 x 240 RM/25	2.587,20	43	48	3.700	539	635
1 x 300 RM/25	3.163,20	46	51	4.350	606	725
1 x 400 RM/35	4.233,60	49	54	5.300	680	831
1 x 500 RM/35	5.193,60	52	57	6.450	765	953
