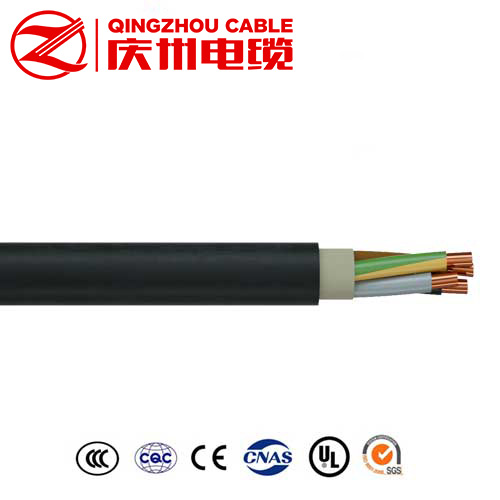

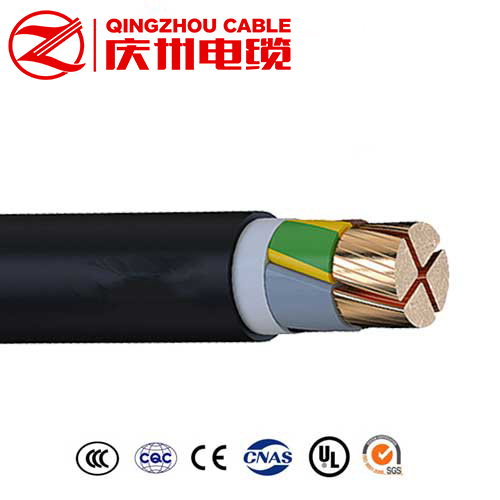

(N)2XY Cable
Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY
Share:
Product Description
(N)2XY Cable | PVC-isolierte Starkstromkabel 0,6/1kV ein- und mehradrig
(N)2XY Cable Application
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

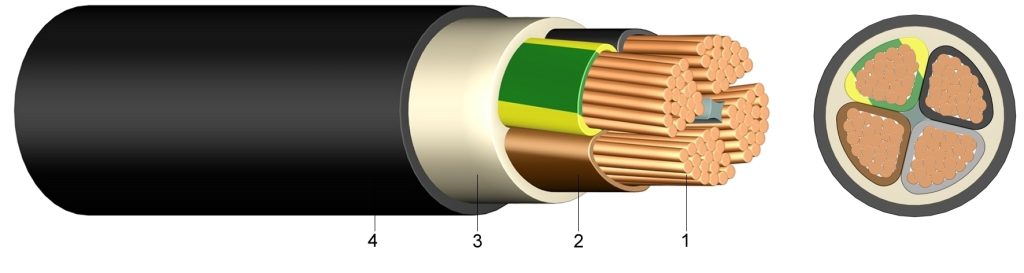

(N)2XY Cable Construction
1…..solid (RE) or stranded (RM/SM) bare copper
2…..core insulation of polyvinylchloride (PVC)
3…..PVC core covering or taping
4…..outer sheath of polyethylene (PE), black, Shore-hardness > 55
(N)2XY Cable Standards
adapted to DIN VDE 0276-603 DIN EN 60228 class 1 and 2 (construction) HD 308 S2 (core identification)
(N)2XY Cable Technical data
| Nominal voltage Uo/U | [V] | 600 / 1000 Volt | |
| Test voltage | [V]AC | 4000 | |
| Temperature range | in motion | -5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Bending radius | Single core | x diameter | 15 |
| Multi core | x diameter | 12 | |
| Flammability | Standard | EN 60332-1-2 |
(N)2XY Cable Specifications
| Number of cores and nominal cross section mm² | Copper figure kg/km | Overall diameter appr. mm | Weight appr. kg / km | Current carrying capacity ground A | Current carrying capacity air A | |
| 1 x 16 RM | 153,60 | 9,3 | 211 | 115 | 102 | |
| 1 x 25 RM | 240,00 | 10,6 | 310 | 148 | 138 | |
| 1 x 35 RM | 336,00 | 11,7 | 401 | 177 | 170 | |
| 1 x 50 RM | 480,00 | 13,0 | 524 | 209 | 207 | |
| 1 x 70 RM | 672,00 | 14,9 | 731 | 256 | 263 | |
| 1 x 95 RM | 912,00 | 17,3 | 1.085 | 307 | 325 | |
| 1 x 120 RM | 1.152,00 | 18,5 | 1.310 | 349 | 380 | |
| 1 x 150 RM | 1.440,00 | 20,6 | 1.525 | 393 | 437 | |
| 1 x 185 RM | 1.776,00 | 23,1 | 1.868 | 445 | 507 | |
| 1 x 240 RM | 2.304,00 | 26,0 | 2.500 | 517 | 604 | |
| 1 x 300 RM | 2.880,00 | 28,4 | 3.180 | 583 | 697 | |
| 3 x 1,5 RE | 43,20 | 10,6 | 162 | 31 | 24 | |
| 3 x 2,5 RE | 72,00 | 11,5 | 205 | 40 | 32 | |
| 3 x 4 RE | 115,20 | 12,4 | 264 | 52 | 42 | |
| 3 x 6 RE | 172,80 | 13,5 | 340 | 64 | 53 | |
| 3 x 10 RE | 288,00 | 16,5 | 534 | 86 | 74 | |
| 3 x 16 RM | 460,80 | 18,9 | 761 | 112 | 98 |
| Number of cores and nominal cross section mm² | Copper figure kg/km | Overall diameter appr. mm | Weight appr. kg / km | Current carrying capacity ground A | Current carrying capacity air A | |
| 3 x 25/ 16 SM | 873,60 | 23,5 | 1.415 | 145 | 133 | |
| 3 x 35/ 16 SM | 1.161,60 | 25,5 | 1.717 | 174 | 162 | |
| 3 x 50/ 25 SM | 1.680,00 | 28,6 | 2.331 | 206 | 197 | |
| 3 x 70/ 35 SM | 2.352,00 | 35,9 | 3.278 | 254 | 250 | |
| 3 x 95/ 50 SM | 3.216,00 | 41,0 | 4.432 | 305 | 308 | |
| 3 x 120/ 70 SM | 4.128,00 | 42,0 | 5.538 | 348 | 359 | |
| 3 x 150/ 70 SM | 4.992,00 | 47,1 | 6.598 | 392 | 412 | |
| 3 x 185/ 95 SM | 6.240,00 | 52,2 | 8.366 | 444 | 475 | |
| 3 x 240/120 SM | 8.064,00 | 58,2 | 10.628 | 517 | 564 | |
| 3 x 300/150 SM | 10.080,00 | 63,8 | 13.164 | 585 | 649 | |
| 4 x 1,5 RE | 57,60 | 11,3 | 189 | 31 | 24 | |
| 4 x 2,5 RE | 96,00 | 12,3 | 243 | 40 | 32 | |
| 4 x 4 RE | 153,60 | 13,4 | 314 | 52 | 42 | |
| 4 x 6 RM | 230,40 | 14,6 | 408 | 64 | 53 | |
| 4 x 10 RM | 384,00 | 17,9 | 655 | 86 | 74 | |
| 4 x 16 RM | 614,40 | 20,5 | 944 | 112 | 98 | |
| 4 x 25 RM | 960,00 | 24,2 | 1.397 | 145 | 133 | |
| 4 x 35 SM | 1.344,00 | 26,9 | 1.806 | 174 | 162 | |
| 4 x 50 SM | 1.920,00 | 30,2 | 2.369 | 206 | 197 | |
| 4 x 70 SM | 2.688,00 | 35,4 | 3.365 | 254 | 250 | |
| 4 x 95 SM | 3.648,00 | 40,9 | 4.586 | 305 | 308 | |
| 4 x 120 SM | 4.608,00 | 44,2 | 5.516 | 348 | 359 | |
| 4 x 150 SM | 5.760,00 | 49,0 | 6.940 | 392 | 412 | |
| 4 x 185 SM | 7.104,00 | 55,8 | 8.645 | 444 | 475 | |
| 4 x 240 SM | 9.216,00 | 62,7 | 11.126 | 517 | 564 | |
| 4 x 300 SM | 11.520,00 | 68,4 | 13.688 | 585 | 649 | |
| 5 x 1,5 RE | 72,00 | 12,3 | 223 | ** | ** | |
| 5 x 2,5 RE | 120,00 | 13,4 | 289 | ** | ** | |
| 5 x 4 RE | 192,00 | 14,6 | 384 | ** | ** | |
| 5 x 6 RE | 288,00 | 16,0 | 502 | ** | ** | |
| 5 x 10 RE | 480,00 | 19,6 | 793 | ** | ** | |
| 5 x 16 RE | 768,00 | 22,6 | 1.125 | ** | ** | |
| 5 x 25 RM | 1.200,00 | 26,5 | 1.663 | ** | ** | |
| 5 x 35 RM | 1.680,00 | 29,5 | 2.175 | ** | ** | |
| 7 x 1,5 RE | 100,80 | 13,1 | 259 | ** | ** | |
| 7 x 2,5 RE | 168,00 | 14,3 | 341 | ** | ** | |
| 9 x 1,5 RE | 129,60 | 15,5 | 322 | ** | ** | |
| 9 x 2,5 RE | 216,00 | 17,0 | 428 | ** | ** | |
| 10 x 1,5 RE | 144,00 | 16,0 | 349 | ** | ** | |
| 10 x 2,5 RE | 240,00 | 17,6 | 465 | ** | ** | |
| 12 x 1,5 RE | 172,80 | 16,5 | 392 | ** | ** | |
| 12 x 2,5 RE | 288,00 | 18,2 | 529 | ** | ** | |
| 14 x 1,5 RE | 201,60 | 17,2 | 438 | ** | ** | |
| 14 x 2,5 RE | 336,00 | 19,0 | 596 | ** | ** | |
| 15 x 1,5 RE | 216,00 | 18,1 | 465 | ** | ** | |
| 15 x 2,5 RE | 360,00 | 20,0 | 633 | ** | ** | |
| 19 x 1,5 RE | 273,60 | 18,9 | 550 | ** | ** | |
| 19 x 2,5 RE | 456,00 | 20,9 | 758 | ** | ** | |
| 21 x 1,5 RE | 302,40 | 19,9 | 599 | ** | ** | |
| 21 x 2,5 RE | 504,00 | 22,0 | 827 | ** | ** | |
| 24 x 1,5 RE | 345,60 | 21,8 | 676 | ** | ** | |
| 24 x 2,5 RE | 576,00 | 24,2 | 935 | ** | ** |
* on enquiry ** The current carrying capacity of the cables depends on the number of cores loaded (see DIN VDE 0276-627)
