NA2XS2Y Cable | XLPE Insulated Single-Core Cable with PE Outer Sheath (6/10 kV, 12/20 kV, 18/30 kV)

NA2XS2Y Cable Application

To be laid directly in ground, outdoors, indoors and in cable ducts.

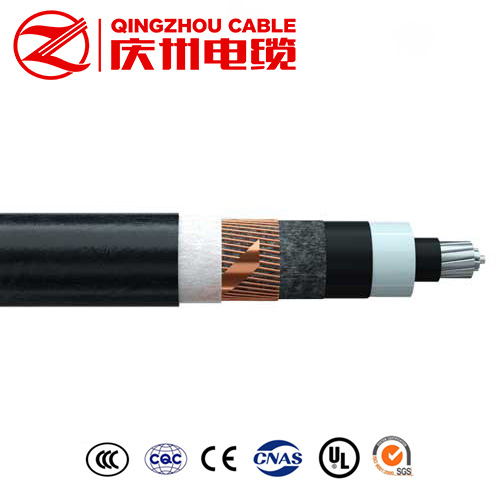

NA2XS2Y Cable Construction

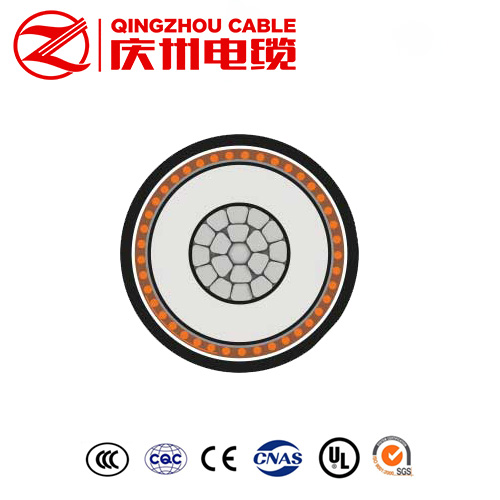

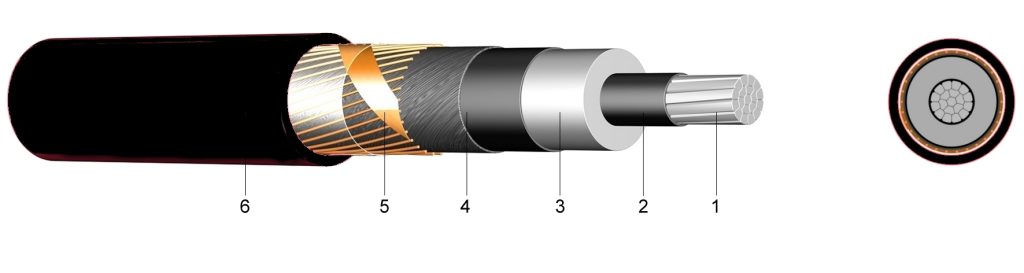

1…..stranded (RM) aluminium wires
2…..inner layer of semi-conducting material
3…..core insulation of cross-linked polyethylene
4…..outer layer of semi-conducting material
5…..screen of copper wires
6…..outer sheath of polyethylene (PE), black

NA2XS2Y Cable Standards

DIN VDE 0276-620 HD 620 S1: 1995 DIN EN 60228 class 2 (construction)

NA2XS2Y Cable Technical data

Test voltage	6 / 10 kV	[kV]	21 / 5 min.
	12 / 20 kV	[kV]	42 / 5 min.
	18 / 30 kV	[kV]	63 / 5 min.
Temperature range	in motion		-20°C till +70°C
	fixed		-20°C till +70°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15

NA2XS2Y Cable Specifications

Number of cores and nominal cross section mm²	Aluminium figure kg/km	Copper figure kg/km	Overall diameter appr. mm	Overall diameter max. value appr. mm	Weight appr. kg / km	Current carrying capacity ground A*	Current carrying capacity air A*
*6 / 10 kV*
1 x 35 RM/16	103	182,40	23	28	600	145	153
1 x 50 RM/16	147	182,40	24	29	670	171	183
1 x 70 RM/16	206	182,40	26	31	770	208	228
1 x 95 RM/16	279	182,40	27	32	880	248	278
1 x 120 RM/16	353	182,40	29	34	950	283	321
1 x 150 RM/25	441	283,20	30	35	1.150	315	364
1 x 185 RM/25	544	283,20	32	37	1.250	357	418
1 x 240 RM/25	706	283,20	34	39	1.500	413	494
1 x 300 RM/25	882	283,20	36	41	1.700	466	568
1 x 400 RM/35	1.176	393,60	40	45	2.100	529	660

Number of cores and nominal cross section mm²	Aluminium figure kg/km	Copper figure kg/km	Overall diameter appr. mm	Overall diameter max. value appr. mm	Weight appr. kg / km	Current carrying capacity ground A*	Current carrying capacity air A*
*12 / 20 kV*
1 x 50 RM/16	147	182,40	28	33	820	172	185
1 x 70 RM/16	206	182,40	30	35	930	210	231
1 x 95 RM/16	279	182,40	31	36	1.050	251	280
1 x 120 RM/16	353	182,40	33	38	1.150	285	323
1 x 150 RM/25	441	283,20	34	39	1.350	319	366
1 x 185 RM/25	544	283,20	36	41	1.500	361	420
1 x 240 RM/25	706	283,20	39	44	1.750	417	496
1 x 300 RM/25	882	283,20	41	46	2.000	471	569
1 x 400 RM/35	1.176	393,60	44	49	2.350	535	660

Number of cores and nominal cross section mm²	Aluminium figure kg/km	Copper figure kg/km	Overall diameter appr. mm	Overall diameter max. value appr. mm	Weight appr. kg / km	Current carrying capacity ground A*	Current carrying capacity air A*
*18 / 30 kV*
1 x 50 RM/16	147	182,40	33	38	1.100	174	187
1 x 70 RM/16	206	182,40	35	40	1.200	213	232
1 x 95 RM/16	279	182,40	36	41	1.350	254	282
1 x 120 RM/16	353	182,40	38	43	1.450	289	325
1 x 150 RM/25	441	283,20	39	44	1.700	322	367
1 x 185 RM/25	544	283,20	41	46	1.850	364	421
1 x 240 RM/25	706	283,20	43	48	2.050	422	496
1 x 300 RM/25	882	283,20	46	51	2.350	476	568
1 x 400 RM/35	1.176	393,60	49	54	2.800	541	650
