NAYY Cable

Category: LV & MV Power Cables Tag: Power Cables 0.6/1 KV PVC and PE Insulated

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

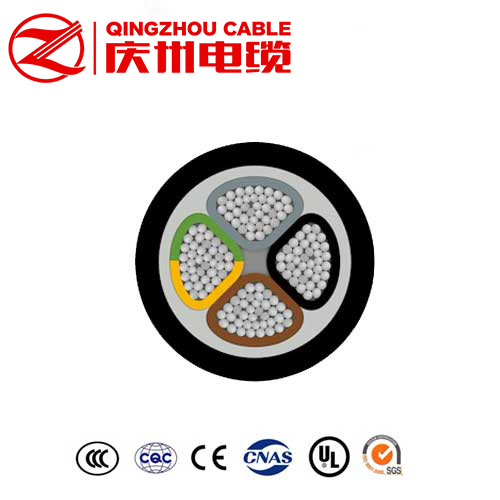

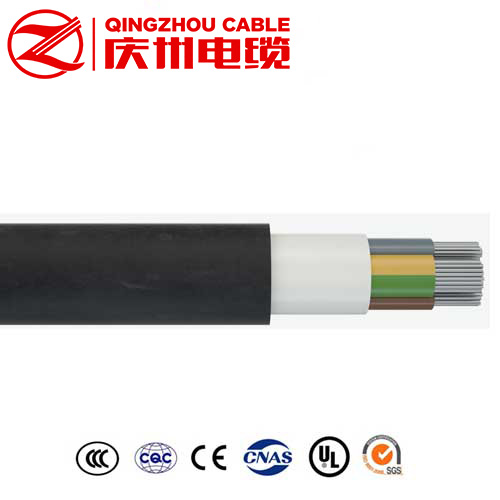

NAYY Cable | PVC Insulated Cable with Aluminium Conductor

NAYY Cable Application

This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

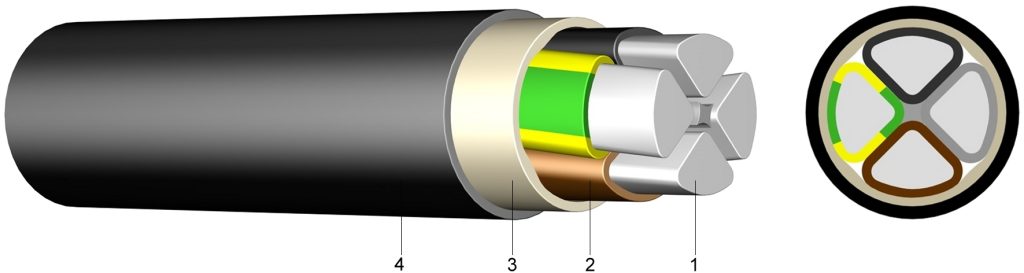

NAYY Cable Construction

1…..solid (SE) or stranded (RM/SM) aluminium wires
2…..core insulation of polyvinylchloride (PVC)
3…..PVC inner sheath (FM)
4…..outer sheath of polyvinylchloride (PVC), black, UV-resistant

NAYY Cable Information

short circuit temperature at core (max. 5 sec.) < =300mm² –> 160°C > 300mm² –> 140°C

NAYY Cable Standards

DIN VDE 0276-603 HD 603 S1 DIN EN 60228 class 1 and 2 (construction) HD 308 S2 (core identification)

NAYY Cable Technical data

Nominal voltage Uo/U		[V]	600 / 1000 Volt
Test voltage		[V]_AC	4000
Temperature range	in motion		– 5°C till +70°C
	fixed		-20°C till +70°C
Bending radius	single-core style	x diameter	15
	multi-core style	x diameter	12
Flammability	standard		EN 60332-1-2

NAYY Cable Specifications

Number of cores and nominal cross section mm²	Aluminium figure kg/km	Overall diameter appr. mm	Weight appr. kg / km	Current carrying capacity ground A	Current carrying capacity air A
1 x 16 RE	49	11	161	*	*
1 x 25 RM	74	11	174	106	87
1 x 35 RM	103	12	209	127	107
1 x 50 RM	147	14	282	151	131
1 x 70 RM	206	16	363	185	166
1 x 95 RM	279	18	520	222	205
1 x 120 RM	353	19	557	253	239
1 x 150 RM	441	21	674	284	273
1 x 185 RM	544	24	826	322	317
1 x 240 RM	706	26	1.052	375	378
1 x 300 RM	882	29	1.282	425	437
1 x 400 RM	1.2	32	1.598	487	513
1 x 500 RM	1.51	36	2.022	558	600
1 x 630 RM	1.9	40	2.2	635	701

Number of cores and nominal cross section mm²	Aluminium figure kg/km	Overall diameter appr. mm	Weight appr. kg / km	Current carrying capacity ground A	Current carrying capacity air A
4 x 25 RE	294	27	887	102	82
4 x 35 RE	412	29	796	123	100
4 x 50 SE	588	31	1.017	144	119
4 x 70 SE	823	34	1.312	179	152
4 x 95 SE	1.14	40	1.698	215	186
4 x 120 SE	1.44	42	2.459	245	216
4 x 150 SE	1.764	51	2.594	275	246
4 x 185 SE	2.176	54	3.777	313	285
4 x 240 SE	2.822	60	4.106	364	338

4 x 35 RM	412	29	796	123	100
4 x 50 SM	588	31	1.017	144	119
4 x 70 SM	823	34	1.312	179	152
4 x 95 SM	1.14	40	1.698	215	186
4 x 120 SM	1.44	42	2.459	245	216
4 x 150 SM	1.764	51	2.594	275	246
4 x 185 SM	2.176	54	3.777	313	285
4 x 240 SM	2.822	60	4.106	364	338
4 x 300 SM	3.528	63	5.8	419	400

5 x 16 RM	245	25	858
5 x 25 RM	383	29	1.214	102	81
5 x 35 RM	536	32	1.453	121	99
5 x 50 SM	781	35	1.855	144	119
5 x 70 SM	1.094	40	2.351	179	152
5 x 95 SM	1.484	45	3.071	215	186
5 x 120 SM	1.875	49	3.631	245	216
5 x 150 RM	2.218	58	4.8	275	246
5 x 185 RM	2.736	62	5.445	313	285
5 x 240 RM	3.53	71	6.95	364	338
