(N)YFGY Cable

Category: LV & MV Power Cables Tag: Power Cables 6 - 30 KV PVC and XLPE Insulated

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

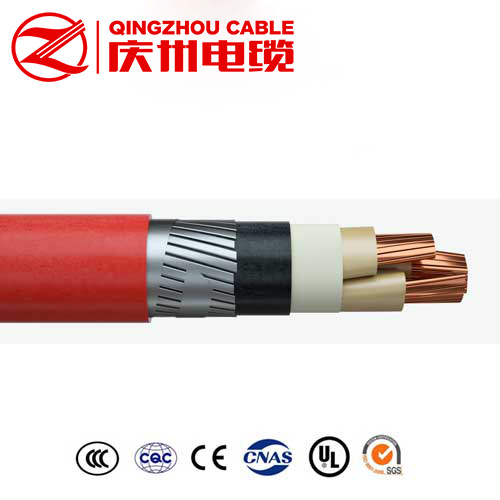

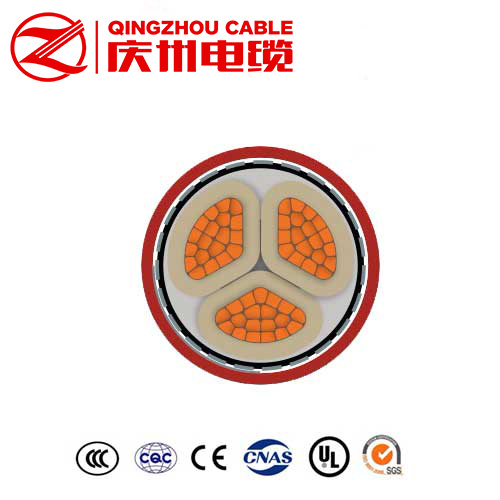

(N)YFGY Cable | Three-Core PVC Insulated Cable with Flat Wire Amour

(N)YFGY Cable Application

To be laid directly in ground, in water, outdoors, indoors and in cable ducts if increased mechanical protection is required or if greater tensile stresses are to be expected during installation and operation.

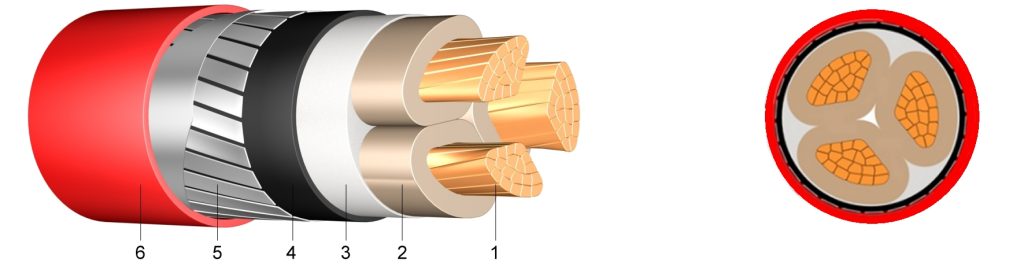

(N)YFGY Cable Construction

1…..stranded bare copper
2…..core insulation of polyvinylchloride (PVC-DIV4)
3…..rubber core covering
4…..inner sheath of polyvinylchloride (PVC-DMV5)
5…..armour of galvanised flat steel wires and counter helix
6…..outer sheath of polyvinylchloride (PVC), red

(N)YFGY Cable Standards

DIN VDE 0271 DIN VDE 0276-603 DIN EN 60228 class 2 (construction)

(N)YFGY Cable Technical data

Nominal voltage Uo/U		[V]	3600 / 6000 Volt
Test voltage		[V]_AC	11000
Temperature range	in motion		– 5°C till +70°C
	fixed		-20°C till +70°C
Operating temperature	short circuit	°C	160
Short circuit time	max.	[sec]	5
Bending radius	in motion	x diameter	15
Flammability	standard		EN 60332-1-2

(N)YFGY Cable Specifications

Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter appr. mm	Weight appr. kg / km	Current carrying capacity ground A	Current carrying capacity air A
3 x 50 SM	1.440,00	41	3.520	175	165
3 x 70 SM	2.016,00	44	4.345	220	205
3 x 95 SM	2.736,00	47	5.330	260	250
3 x 120 SM	3.456,00	49	6.220	295	285
3 x 150 SM	4.320,00	52	7.120	335	325
3 x 185 SM	5.328,00	57	8.625	370	380
3 x 240 SM	6.912,00	59	9.885	425	430
