Product Description

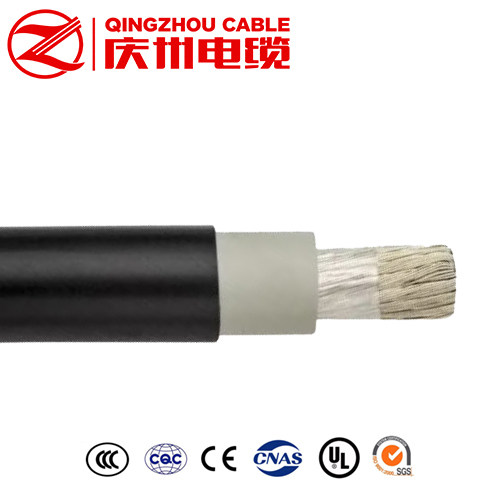

Special Rubber Single Core Cable 1,8 / 3 kV
Special Rubber Single Core Cable Application
For track bound vehicles and trackless trolley buses as well as for installations in dry locations, in switchboards and distributors up to 1.000 V as a short circuit and earth fault proof cable at the nominal voltage of Uo / U 1.8 / 3 kV.

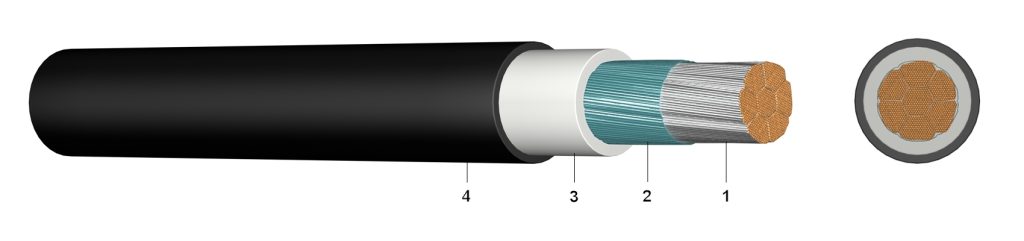

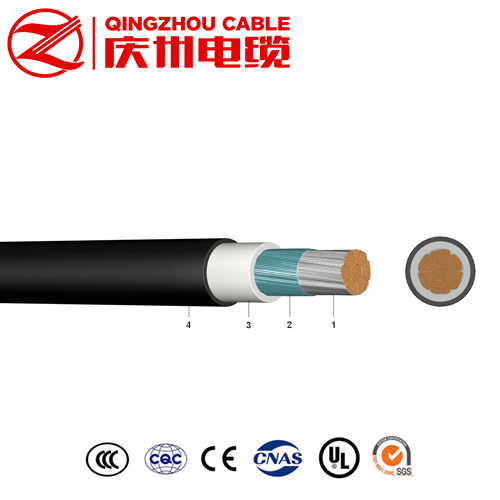

Special Rubber Single Core Cable Construction
1…..fine-stranded tinned copper
2…..wrapped with Alu-PT-Film
3…..EPR rubber insulation
4…..outer sheath of polychloroprene, black, abrasion an oil resistant, flame retardant
Special Rubber Single Core Cable Standards
DIN VDE 0250 part 602 DIN EN 60228 class 5 (construction)
Special Rubber Single Core Cable Technical data:
| Nominal voltage Uo/U | [V] | 1800 / 3000 Volt | |
| Test voltage | [V]AC | 6000 | |
| Temperature range | in motion | -25°C till +80°C | |
| Operating temperature | short circuit | °C | 200 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | one time / fixed | x diameter | 6 |
| in motion | x diameter | 10 | |
| Oil-resistant | standard | EN 60811-2-1 | |
| Flammability | standard | EN 60332-1-2 |
Special Rubber Single Core Cable Specifications
| Nominal cross section mm² | Copper figure kg/km | Cond. construction (appr. value) mm | Overall diameter appr. mm | Current carrying capacity air A | Weight appr. kg / km |
| 1,5 | 14,40 | 30 x 0,26 | 6,5 | 30 | 60 |
| 2,5 | 24,00 | 50 x 0,26 | 7,0 | 41 | 70 |
| 4 | 38,40 | 56 x 0,31 | 7,5 | 55 | 90 |
| 6 | 57,60 | 84 x 0,31 | 8,5 | 70 | 120 |
| 10 | 96,00 | 80 x 0,41 | 10,0 | 98 | 180 |
| 16 | 153,60 | 126 x 0,41 | 11,0 | 132 | 250 |
| 25 | 240,00 | 196 x 0,41 | 13,0 | 176 | 390 |
| 35 | 336,00 | 276 x 0,41 | 14,0 | 218 | 470 |
| 50 | 480,00 | 396 x 0,41 | 15,5 | 276 | 625 |
| 70 | 672,00 | 360 x 0,51 | 17,0 | 347 | 880 |
| 95 | 912,00 | 475 x 0,51 | 19,5 | 416 | 1.190 |
| 120 | 1.152,00 | 608 x 0,51 | 21,5 | 488 | 1.430 |
| 150 | 1.440,00 | 756 x 0,51 | 23,0 | 566 | 1.750 |
| 185 | 1.776,00 | 925 x 0,51 | 25,0 | 644 | 2.160 |
| 240 | 2.304,00 | 1221 x 0,51 | 28,0 | 775 | 2.534 |
| 300 | 2.880,00 | 1530 x 0,51 | 32,5 | 898 | 3.178 |
