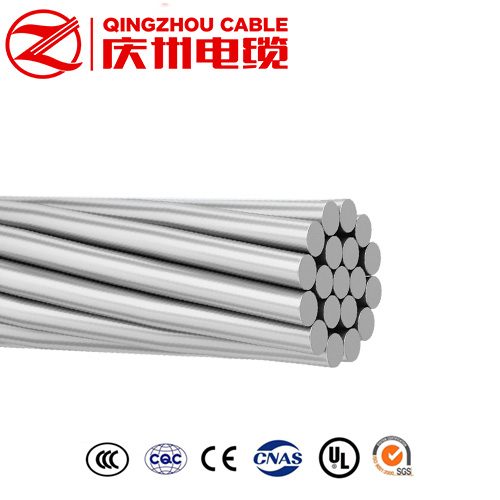

TAAAC TAL Thermal Resistant Aluminum Alloy Conductors
Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY
Share:
Product Description
TAAAC TAL Thermal Resistant Aluminum Alloy Conductors
TAAAC Application
Thermal Resistant Aluminum-alloy Conductors(TAL). Used for overhead power lines, ground wires, steel stay wires
Urban network capacity transformation, substation, power plant construction and general lines
TAAAC Conductor Standards
IEC 61089; JEC 3406; IEC 62004;
Hight Temperature Characteristics
(Compared with conventional ACSR)
1.Long-term working temperature of 150℃, short-term temperature up to 180℃, so that the continuous allowable carrying capacity of the same specification of ordinary wire 1.5~1.6 times.
2.Under normal temperature, with ordinary aluminum wire has the same strength, high temperature operation mechanical strength retention rate can be maintained at more than 90%.
3.Compared with ordinary aluminum wire, it has the same creep properties at room temperature or high temperature.
4.There is no significant difference between the salt spray test in laboratory and the outdoor air exposure test.
5.Installation and maintenance are the same as ordinary wire installation procedures, without any special tools, tooling, installation and maintenance are convenient, and the cost is low.
Thermal Resistant Aluminum-alloy Conductors Specifications
JEC 3406 Standard – TAL Conductors (60% IACS Conductivity)
| Nominal cross-section area | Construction | Calculated cross-section area | Approx. Overall diameter | Approx. Overall weight | Maximum DC resistance at 20oC | Rated strength |
| mm2 | No.xmm | mm2 | mm | kg/km | Ω/km | kN |
| 240 | 19 x 4.0 | 238.8 | 20.0 | 655 | 0.1220 | 34.2 |
| 400 | 37 x 3.7 | 397.8 | 25.9 | 1097 | 0.0737 | 58.0 |
| 510 | 37 x 4.2 | 512.5 | 29.4 | 1413 | 0.0571 | 73.3 |
| 660 | 61 x 3.7 | 655.8 | 33.3 | 1812 | 0.0448 | 95.6 |
| 850 | 61 x 4.2 | 844.9 | 37.8 | 2334 | 0.0342 | 120.9 |
| 980 | 91 x 3.7 | 978.3 | 40.7 | 2714 | 0.0302 | 142.7 |
| 1030 | 91 x 3.8 | 1032 | 41.8 | 2864 | 0.0286 | 150.5 |
| 1260 | 91 x 4.2 | 1260 | 46.2 | 3499 | 0.0234 | 180.3 |
| 1600 | 127 x 4.0 | 1596 | 52.0 | 4440 | 0.0186 | 228.5 |
| 2020 | 127 x 4.5 | 2019 | 58.5 | 5616 | 0.0147 | 289.0 |
| 2500 | 127 x 5.0 | 2494 | 65.0 | 6937 | 0.0118 | 357.0 |
JEC 3406 Standard – TAL Conductors (58% IACS Conductivity)
| Nominal cross-section area | Construction | Calculated cross-section area | Approx. Overall diameter | Approx. Overall weight | Maximum DC resistance at 20oC | Rated strength |
| mm2 | No.xmm | mm2 | mm | kg/km | Ω/km | kN |
| 240 | 19 x 4.0 | 238.8 | 20.0 | 655 | 0.1260 | 34.2 |
| 400 | 37 x 3.7 | 397.8 | 25.9 | 1097 | 0.0764 | 58.0 |
| 510 | 37 x 4.2 | 512.5 | 29.4 | 1413 | 0.0593 | 73.3 |
| 660 | 61 x 3.7 | 655.8 | 33.3 | 1812 | 0.0465 | 95.6 |
| 850 | 61 x 4.2 | 844.9 | 37.8 | 2334 | 0.0361 | 120.9 |
| 980 | 91 x 3.7 | 978.3 | 40.7 | 2714 | 0.0313 | 142.7 |
| 1030 | 91 x 3.8 | 1032 | 41.8 | 2864 | 0.0296 | 150.5 |
| 1260 | 91 x 4.2 | 1260 | 46.2 | 3499 | 0.0243 | 180.3 |
| 1600 | 127 x 4.0 | 1596 | 52.0 | 4440 | 0.0191 | 228.5 |
| 2020 | 127 x 4.5 | 2019 | 58.5 | 5616 | 0.0152 | 289.0 |
| 2500 | 127 x 5.0 | 2494 | 65.0 | 6937 | 0.0122 | 357.0 |
