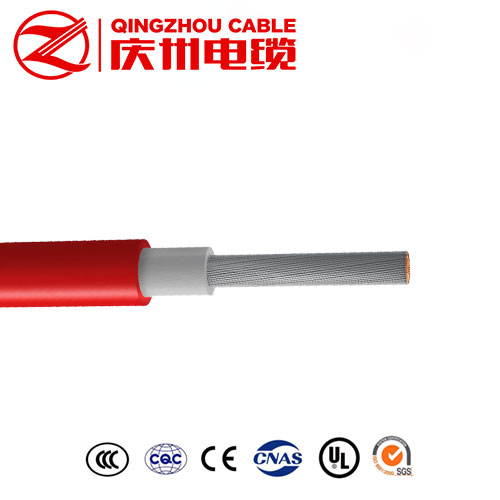

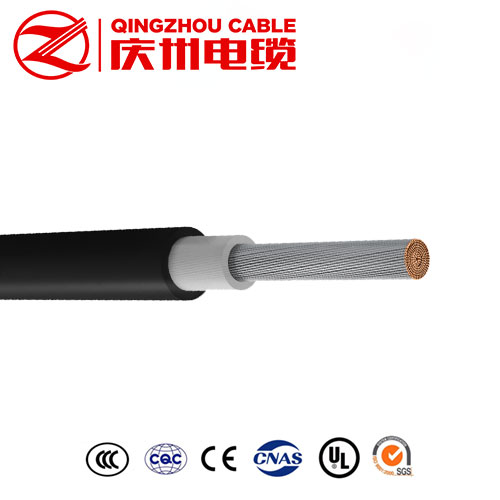

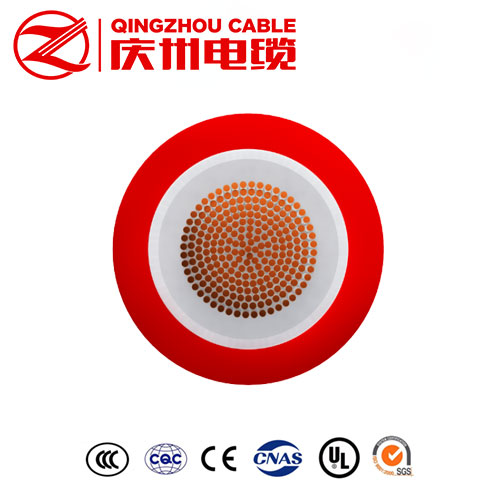

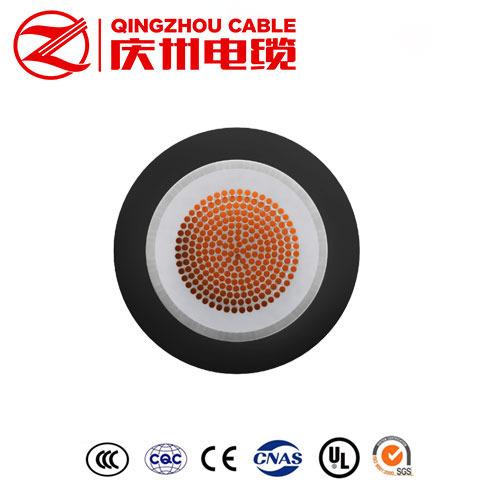

SOLAR CABLE H1Z2Z2-K CABLE

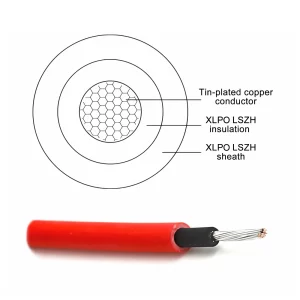

- Conductor: 99.9% Tin-plated Copper
- Insulation: Low smoke halogen-free irradiated cross-linked polyolefin (Black)
- Sheath: Low smoke halogen-free irradiated cross-linked polyolefin (Black/Red)
- AC Rated Voltage (Uo/U): 1.0/1.0kV
- DC Rated Voltage (Uo): 1.5kV (Between conductors, conductor to earth)
- Maximum System Voltage (Um): 1.2kV
- Conductor Operating Temperature: -45°C to +120°C
- Operating Ambient Temperature: -40°C to +90°C
- Cable Laying Temperature: Not lower than -25°C
- Flame Retardant Rating: EN50625 / UL1571
- Minimum Bending Radius: 6D (D: Outer diameter of the cable)
- Installation Methods: Conduit laying, shallow trench laying, cable trench laying, tunnel laying, sandwich laying, supported aerial laying, suspended aerial laying, etc.
- Service Life: ≥25 years
Share:
Product Description
H1Z2Z2-K cable is suitable for both fixed and mobile solar installations (solar farms, rooftop solar installations and floating plants). It is a highly flexible cable compatible with all major connectors and specially de- signed for the connection of photovoltaic panels. This versatile single-conductor cable is designed to meet the varying needs of the solar industry. Suitable for wet, damp and humid locations.
TECHNICAL CHARACTERISTICS:
• Operating voltage: AC- 1.0KV; DC- 1.5KV
• Max. operating voltage: AC- 1.2KV; DC- 1.8KV
• Test volatge: AC- 6.5KV for 5 min; DC- 15KV for 5 min
• Ambient work temperature: from -40 to + 90 °C
• Max. short circuit temperature: +250 ° C for 5s
• Maximum pulling stress: 15 N/mm2 in operation, 50N/mm2 during installation.
TECHNICAL DATA:
• Conductor: Tinned copper multi-wires class 5
• Insulation: LSZH reticulated elastomeric compound
with neutral colour
• Outer sheath: LSZH reticulated elastomeric
compound
• UV resistant
• Colour: Black and red
• Reaction to fire – Performance: EN 50575:2016 Eca
