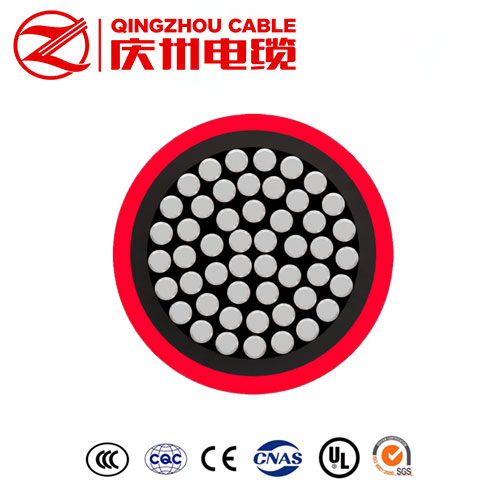

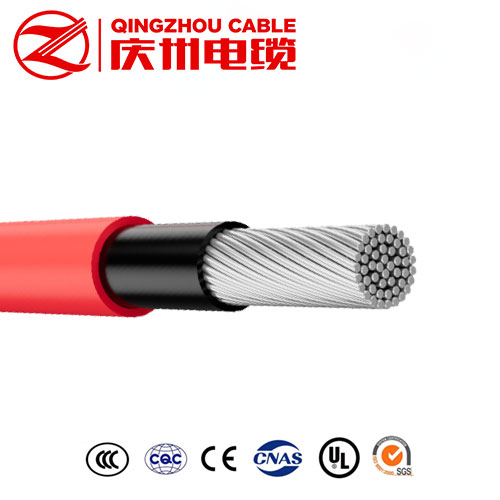

SOLAR CABLE PV1-F Cable

PV1-F cable is mainly used to connect key components such as photovoltaic modules, combiner boxes, inverters, and batteries in indoor and outdoor solar power generation systems.
QZ Cable Group PV1-F cable is professionally irradiated to enhance its insulation performance and mechanical properties. It can meet the specific requirements of photovoltaic applications for cables, such as high temperature resistance, UV resistance, ozone resistance, and hydrolysis resistance.
QZ Cable Group solar cables comply with standards such as EN 50618, BS EN 50396, and meet the HD 605/A1 UV resistance standard. They are also subjected to durability testing according to EN 60216 standards. Our PV1-F solar cable offers high cost-effectiveness for photovoltaic power generation projects.
Specifications: 1.5~150mm²
Product Standard: EN 50618
Product Certification: TÜV, CE, ISO

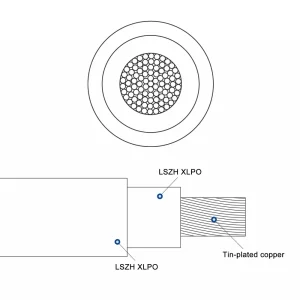

• Conductor: 99.9% Tin-plated copper
• Insulation: LSZH irradiated cross-linked polyolefin
• Sheath: LSZH irradiated cross-linked polyolefin (black and red)
• AC Rated Voltage (Uo/U): 0.6/1kV
• DC Rated Voltage (Uo): 1.8kV (between conductors, non-grounded systems)
• Maximum System Voltage (Um): 1.2kV
• Conductor Operating Temperature: -45°C to +120°C
• Operating Environment Temperature: -40°C to +90°C
• Cable Laying Temperature: Not lower than -25°C
• Flame Retardant Rating: IEC 60332-1
• Minimum Bending Radius: 5D (D: Outer diameter of the cable)
• Installation Methods: Conduit laying, shallow trench laying, cable trench laying, tunnel laying, sandwich laying, supported aerial laying, suspended aerial laying, etc.
• Service Life: ≥25 years
