MGS
MGSG:
MGS:
Type | Suitable Conductor(mm) | Dimensions(mm) | |||
Φ | B | L | H | ||
MGS-50A(B、C) | Φ50/45 | 50 | 60 | 75 | 14 |
MGS-60A(B、C) | Φ60/54 | 60 | 60 | 75 | 14 |
MGS-70A(B、C) | Φ70/64 | 70 | 80 | 85 | 16 |
MGS-80A(B、C) | Φ80/72 | 80 | 80 | 85 | 16 |
MGS-90A(B、C) | Φ90/80 | 90 | 100 | 105 | 18 |
MGS-100A(B、C) | Φ100/90 | 100 | 100 | 105 | 18 |
MGS-110A(B、C) | Φ110/100 | 110 | 100 | 105 | 18 |
MGS-120A(B、C) | Φ120/110 | 120 | 100 | 105 | 18 |
MGS-130A(B、C) | Φ130/116 | 130 | 125 | 130 | 20 |
MGS-150A(B、C) | Φ150/136 | 150 | 125 | 130 | 20 |
MGSG:
TYPE | Suitable Conductor(mm) | Dimensions(mm) | |||
φ | B | L | H | ||
MGSG-50A(B、C) | φ50/45 | 50 | 60 | 75 | 14 |
MGSG-60A(B、C) | φ60/54 | 60 | 60 | 75 | 14 |
MGSG-70A(B、C) | φ70/64 | 7O | 80 | 85 | 16 |
MGSG-80A(B、C) | φ80/72 | 80 | 80 | 85 | 16 |
MGSG-90A(B、C) | φ90/80 | 90 | 100 | 105 | 18 |
MGSG-100A(B、C) | φ100/90 | 100 | 100 | 105 | 18 |
MGSG-110A(B、C) | φ110/100 | 110 | 100 | 105 | 18 |
MGSG-120A(B、C) | φ120/110 | 120 | 100 | 105 | 18 |
MGSG-130A(B、C) | φ130/116 | 130 | 125 | 130 | 20 |
MGSG-150A(B、C) | φ150/136 | 150 | 125 | 130 | 20 |
The MGS type is an aluminum wire clip; the MGSG type is a copper-aluminum transition wire clip, and its model name is: MGSG-××A. MGSG uses MGS as a brazed copper plate;
If the size h and a change, please indicate h×a when ordering.
Note: 1. The body and gland are made of aluminum, and the rest are made of hot-dip galvanized steel
If the size of the terminal board required by the user is different from the above, please specify when ordering;

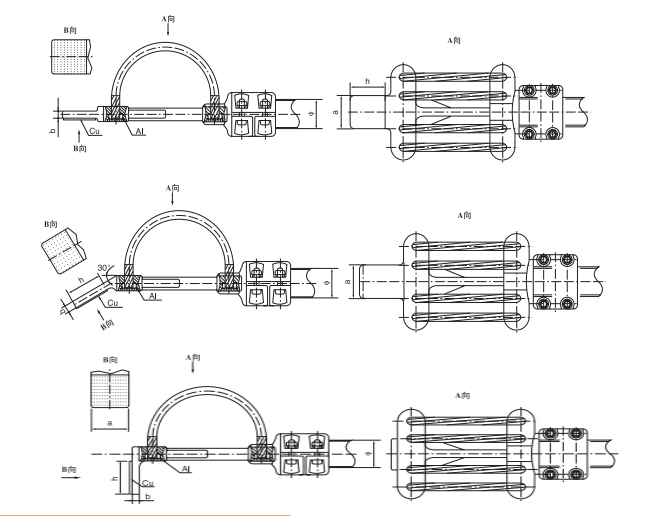

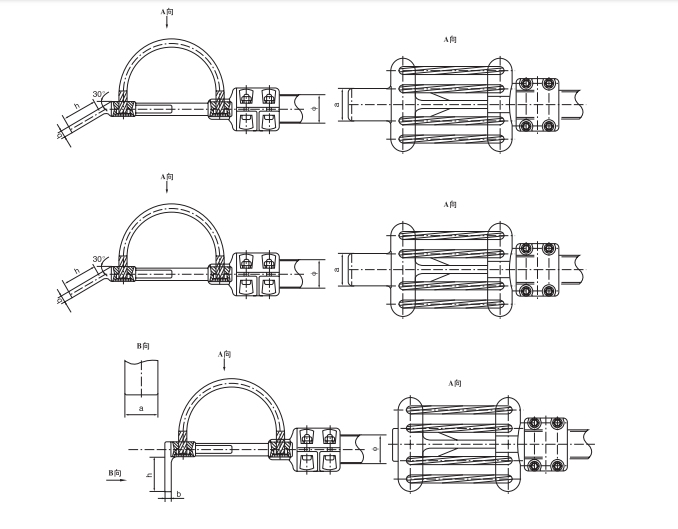

A means α=0° (horizontal); B means α=30°; C means α=90°
