Application

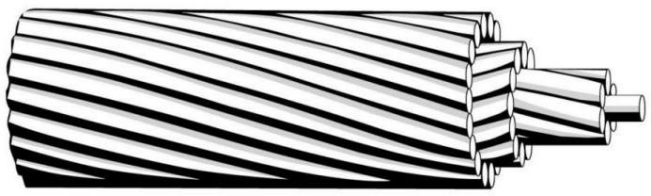

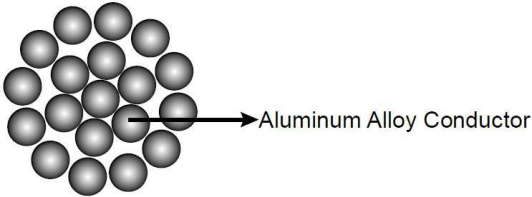

AAAC- The full name: All aluminium alloy conductor. AAAC contains a small percentage (about 0.6%) of silicon and magnesium elements. It provides several benefits for overhead lines.
7 and 19 strand construction is suitable for bare overhead reticulation of medium spans, normally at low and medium voltages. 37 and 61 strand construction is suitable for transmission and subtransmission lines where homogeneous construction can reduce line losses and improve corrosion resistance in conductors with similar strength to ACSR types.
Standard
Australian/New Zealand Standards-AS/NZS 1531
AAAC 1120 AS 1531
Code Name | Area Actual | Equivalent Copper Area | Stranding | Overall Diameter | Weight | Rated Strength | Maximum DC Resistance at 20oC |
mm2 | mm2 | No / mm | mm | kg/km | kN | Ω /km | |
Chlorine | 34.36 | 20.3 | 7/2.50 | 7.5 | 94.3 | 8.18 | 0.864 |
Chromium | 41.58 | 24.5 | 7/2.75 | 8.25 | 113 | 9.91 | 0.713 |
Fluorine | 49.48 | 29.2 | 7/3.00 | 9 | 135 | 11.8 | 0.599 |
Helium | 77.28 | 45.6 | 7/3.75 | 11.3 | 211 | 17.6 | 0.383 |
Hydrogen | 111.3 | 65.7 | 7/4.50 | 13.5 | 304 | 24.3 | 0.266 |
Iodine | 124 | 73.2 | 7/4.75 | 14.3 | 339 | 27.1 | 0.239 |
Krypton | 157.6 | 93 | 19/3.25 | 16.3 | 433 | 37.4 | 0.189 |
Lutetium | 182.8 | 107.9 | 19/3.50 | 17.5 | 503 | 41.7 | 0.163 |
Neon | 209.8 | 123.8 | 19/3.75 | 18.8 | 576 | 47.8 | 0.142 |
Oxygen | 336.7 | 198.7 | 19/4.75 | 23.8 | 924 | 73.6 | 0.0884 |
Nitrogen | 261.6 | 154.3 | 37/3.00 | 21 | 721 | 62.2 | 0.114 |
Nobelium | 307 | 181.1 | 37/3.25 | 22.8 | 845 | 72.8 | 0.0973 |
Phosphorous | 408.5 | 241 | 37/3.75 | 26.3 | 1120 | 93.1 | 0.0731 |
Selenium | 506.1 | 298.6 | 61/3.25 | 29.3 | 1400 | 114 | 0.0592 |
Silicon | 586.9 | 346.3 | 61/3.50 | 31.5 | 1620 | 127 | 0.0511 |
Sulfur | 673.4 | 397.3 | 61/3.75 | 33.8 | 1860 | 145 | 0.0444 |
AAAC 6201 AS 1531
Code name | Construction No./Wire diameter | Sectional area | Calculated Equialent Aluminium area | Approx Overall diameter | Approx weight | Calculated Breaking load | Calculated DC resistance At 20℃ |
No./mm | mm² | mm² | mm | Kg/Km | KN | Ohm/Km | |
Diamond | 7/2.50 | 34.4 | 29.3 | 7.5 | 94.3 | 9.64 | 0.967 |
Dolomite | 7/2.75 | 41.6 | 35.4 | 8.3 | 113 | 11.6 | 0.799 |
Emerald | 7/3.00 | 49.5 | 42.2 | 9.0 | 135 | 13.9 | 0.671 |
Garnet | 7/3.75 | 77.3 | 65.8 | 11.3 | 211 | 21.7 | 0.430 |
Jade | 7/4.50 | 111 | 94.8 | 13.5 | 304 | 31.2 | 0.298 |
Jasper | 7/4.75 | 124 | 106 | 14.3 | 339 | 34.8 | 0.268 |
Opal | 19/3.25 | 158 | 134 | 16.3 | 433 | 44.2 | 0.212 |
Patronite | 19/3.50 | 183 | 155 | 17.5 | 503 | 51.3 | 0.183 |
Pearl | 19/3.75 | 210 | 178 | 18.8 | 576 | 58.8 | 0.159 |
Ruby | 37/3.00 | 262 | 221 | 21.0 | 721 | 73.5 | 0.128 |
Ruthenium | 37/3.25 | 307 | 260 | 22.8 | 845 | 86.1 | 0.109 |
Rutile | 19/4.75 | 337 | 285 | 23.8 | 924 | 94.4 | 0.0991 |
Sapphire | 37/3.75 | 409 | 345 | 26.3 | 1120 | 115 | 0.0819 |
Spinel | 61/3.25 | 506 | 427 | 29.3 | 1400 | 135 | 0.0662 |
Tantalum | 61/3.50 | 587 | 495 | 31.5 | 1620 | 156 | 0.0572 |
Topaz | 61/3.75 | 674 | 568 | 33.8 | 1860 | 179 | 0.0495 |
