3x10 AWG Concentric Aluminum Cable for Ecuador

Concentric Cable, Aluminum Concentric Cable

1 GENERAL CHARACTERISTICS CONCENTRIC ALUMINUM CABLE 3X10 AWG1.1 Gauge: 10 AWG

1.2 Conductor Area: 5.26 mm

1.3 Wire Diameter: 2.59 mm

1.4 Conductor Formation: 1 x 2.59 mm

1.5 DC Resistance at 20 “C: 5.48 Ω/km

2 Phase insulation: PVC-NTE 2345 and UL 83 standards

2.1 Nominal insulation thickness: 0.51 mm

2.2 Diameter of conductor with insulation: 3.61 mm

3 Jacket material: Nylon-NTE 2345 and UL 83 standards

3.1 Nominal thickness of nylon coating: 0.10 mm

3.2 Final diameter of conductor with insulation and nylon: 3.81 mm

3.3 Maximum operating temperature: 90"C

3.4 0perating voltage: 600 V

3.5 Minimum insulation resistance at 15.6 'C: 131.86 M0*km.

3.6 Insulation Colors: White and Black

4 Jacket Insulation: PVC-NEMA WC 70 Standard

4.1 Minimum Jacket Thickness: 1.14 mm

4.2 Cable Outer Diameter: 10.51 mm

4.3 Maximum OperatingTemperature: 90"C

4.4 Test Voltage: 2.00 kV

4.5 Insulation Colors: Black

5 General Data

5.1 Marking: Ink Printing "THIS IS ALUMINUM"

5.2 Sequential Marking: Meter by Meter

5.3 Cable Outer Diameter: 10.51 mm

5.4 Standards:ASTM-B800,ASTM-B801,NTC 5521

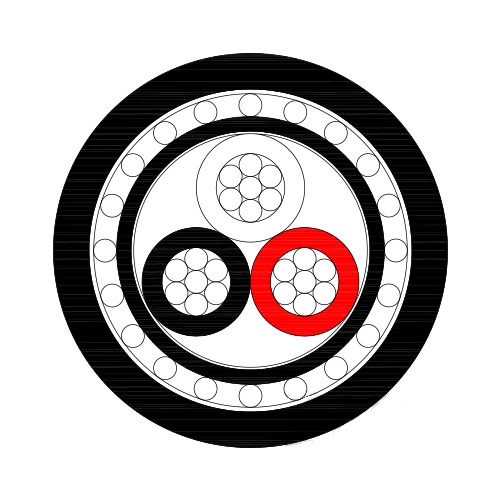

1.Phase conductor: Aluminum
2.Insulation :XLPE
Insulation color : Black, Red and White
3.Neutral conductor :Aluminum alloy conductor 8000 series
4.Binder tape :Non-hygroscopic tape
5.Sheathed:PVC (XLPE/PE) sheath
